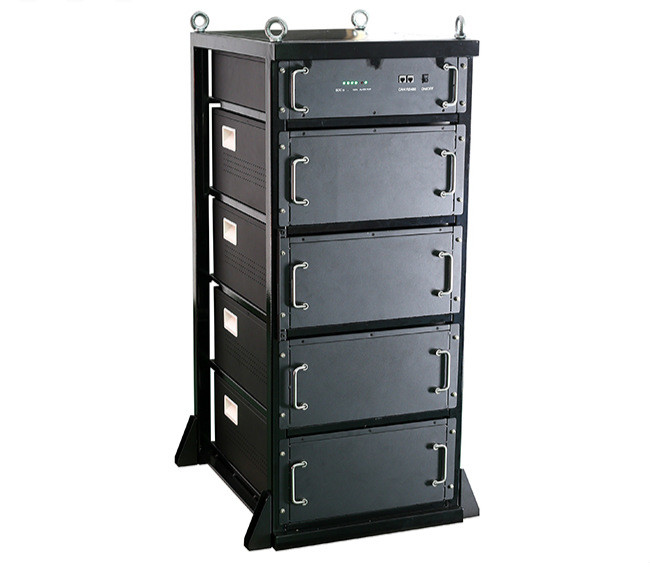

FOSHAN RJ TECH 48V 30kwh Lithium Battery LiFeP04 BMS Off Grid Solar

work with Solis/SolaX/Sofar/Voltronic/East Inverters
Material:
Voltage:
Capacity:
Lifecycle:
Availability:
Quantity:
  • RJ-LFP-30K-C

  • RJ

  • RJ-LFP-30K-C




                 8500CYCLES - 15YEARS WARRANTY - FACTORY PRICE


FOSHAN RJ TECH is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is  the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 8500cycles at 100%DOD. We offer very good

price with top quality, our powerwall home battery is 15years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye, Growatt, Goodwe, Outback etc. look for distributors


Investing in a home solar energy solution can seem like a daunting challenge.

That is why FOSHAN RJ TECH is here, to give you all the information you need to get a system that is exactly right for you at a price that suits you!

Your electric bills will be reduced or eliminated

Your electricity feed will remain secure

If the power goes down, you won’t be left in the dark

All essential appliances will continue to work

Your TV, Computer and Cell phone will be charged and functioning

You will be unaffected by the inevitable increases in utility costs

Remain safe and secure at home

Contact FOSHAN RJ TECH Now and let us answer all your questions.

90


48V30Kwh-1


Norminal Power(KWh) 30 KWh
Norninal Capacity(Ah) 600Ah
Norninal Voltage(V) 51.2V
Type LiFePO4 Battery
Dimensions (mm) 1600 x 800 x 610 mm(Customized)
Weight(Kg) 300Kg
Discharging Voltage(V) 40~58.4 V
Discharging Voltage(V) 57.5~58.4 V
Charging/ 100A (Customizable)
Discharging Current (A)

150 A

200 A(PeaK)
Expansibility 100KWh
10 moudles can be in parallel
Installation Methode Floor Mounted
Communication Port CAN,RS232,RS485, Bluetooth (Optional)
Working Temperature(℃) 0~55℃
Shelf Temperature(℃) -20~70℃
Humidity 0-95% RH(Non-condensing)
IP Grade (IP) 0-95% RH(Non-condensing)
Altitude ≤3000m
Authentication Level TuV/CE/UN38.3
Design Life(year) 30+ years (@25℃/77℉)
Cycle Life (cycle) >8500Times (100%DOD)

48V30Kwh-2


48V30Kwh-3




Features

•          More than 8500 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.



BMS

Item



Content Criterion
Over charge
 Protection



Over charge detection voltage 3.6~4.25V
Over charge detection delay time 0.1 S ~ 6S
Over charge release voltage 3.5~4.25V
Over discharge protection

Over discharge detection voltage



2.0~3.3V
Over discharge detection delay time 0.1 S ~ 6S
Over discharge release voltage 2.1~3.4V
Charge
Over current protection
Charge Over current detection current 1~100A
Charge Over current detection delay time 0.02S~ 6S

Discharge

Over current

protection

Discharge Over current detection current 1~600A

Discharge Over current detection delay time



0.02S~ 6S

Short

protection

Short protection detection delay time 100 u S
Detection condition B+ P-0.2 Omh
restore Cut off load
Interior Resistance Main loop electrify resistance 2 OMh(50A)
Currentconsumption Current consume in normal operation 1.5mA Type
Currentconsumption Current consume in sleep operation 2 uA Type


                          FOSHAN RJ TECH Batteries More Model Available



                                                                     Home Battery Powerwall Battery
Rated Energy Capacity Voltage Installation Communication Weight lifespan Cylces
5KWH 100AH 48V Wall/Floor RS485/Bluetooth 50KG 30years 8000times
10KWH 200AH 48V Wall/Floor RS485/Bluetooth 100KG 30years 8000times
15KWH 300AH 48V Wall/Floor RS485/Bluetooth 150KG 30years 8000times
20KWH 400AH 48V Wall/Floor RS485/Bluetooth 200KG 30years 8000times
25KWH 500AH 48V Wall/Floor RS485/Bluetooth 250KG 30years 8000times
30KWH 600AH 48V Wall/Floor/Rack RS485/Bluetooth 300KG 30years 8000times
35KWH 700AH 48V Wall/Floor/Rack RS485/Bluetooth 350KG 30years 8000times
40KWH 800AH 48V Wall/Floor/Rack RS485/Bluetooth 400KG 30years 8000times
45KWH 900AH 48V Wall/Floor/Rack RS485/Bluetooth 450KG 30years 8000times
50KWH 1000AH 48V Wall/Floor/Rack RS485/Bluetooth 500KG 30years 8000times
55KWH 1100AH 48V Wall/Floor/Rack RS485/Bluetooth 550KG 30years 8000times
60KWH 1200AH 48V Wall/Floor/Rack RS485/Bluetooth 600KG 30years 8000times
65KWH 1300AH 48V Wall/Floor/Rack RS485/Bluetooth 650KG 30years 8000times
70KWH 1400AH 48V Wall/Floor/Rack RS485/Bluetooth 700KG 30years 8000times
75KWH 1500AH 48V Wall/Floor/Rack RS485/Bluetooth 750KG 30years 8000times
80KWH 1600AH 48V Wall/Floor/Rack RS485/Bluetooth 800KG 30years 8000times
85KWH 1700AH 48V Wall/Floor/Rack RS485/Bluetooth 850KG 30years 8000times
90KWH 1800AH 48V Wall/Floor/Rack RS485/Bluetooth 900KG 30years 8000times
100KWH 2000AH 48V Wall/Floor/Rack RS485/Bluetooth 1000KG 30years 8000times
                                           Factory   Price- Customization available- MOQ1pcs-15Years warranty



                       FOSHAN RJ TECH Batteries Certifications

RJ ENERGY Batteries Certification




RJ TECH Batteries Application All Over the World

RJ ENERGY BATTERY REVIEW-1RJ ENERGY BATTERY REVIEW-2RJ ENERGY BATTERY REVIEW-3



                         What Clients Say about RJ TECH Batteries

Foshan-RJ-New-Energy-Technology-Co-Ltd-

RJ ENERGY Batteries Review-2

Foshan-RJ-New-Energy-Technology-Co-Ltd- (3)

Foshan-RJ-New-Energy-Technology-Co-Ltd- (1)



               RJ TECH ISO9001 Factory Automatic Production Line

RJ ENERGY FACTORY-1


RJ ENERGY FACTORY-2


RJ ENERGY FACTORY-3


                            RJ TECH Batteries Wooden Package

RJ ENERGY FACTORY-4


RJ ENERGY FACTORY-5



                  RJ TECH Batteries Compatible with All Inverters

RJ ENERGY Batteries Compatible Inverters
