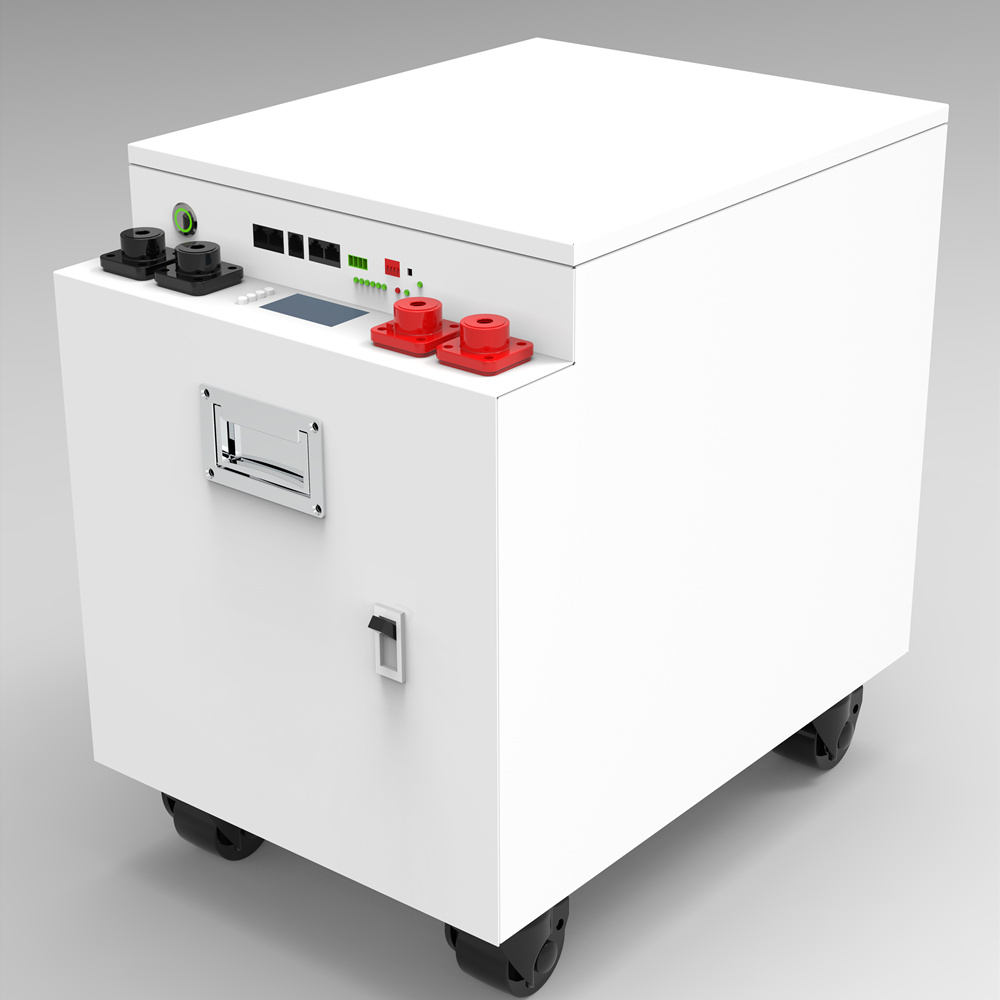

RJ-Powerwall-48300A
RJ
RJ-Powerwall-48300A
8500CYCLES - 15YEARS WARRANTY - FACTORY PRICE
FOSHAN RJ TECH is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 8500cycles at 100%DOD. We offer very goodprice with top quality, our powerwall home battery is 15years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye,Growatt, Goodwe, Outback etc. look for distributors
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 300Ah |
| Energy | 15KWh |
| Internal Resistance | ≤15mΩ |
| Limited Charge Voltage | 58.4V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 40.0V |
| Charge Current | 80A (Customizable) |
| Continuous Discharge Current | 200A (Customizable) |
| Pulse Discharge Current | 400A (Peak) |
| Cycle Life | > 8500 cycles |
| Dimension (mm) | L655*W385*H385mm(Customized) |
| Weight | 149Kg |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -20~65℃ |
| Recommended Operating Temperature | 15~55℃ |
Item
| Content | Criterion |
Over charge Protection
| Over charge detection voltage | 3.6~4.25V |
| Over charge detection delay time | 0.1 S ~ 6S | |
| Over charge release voltage | 3.5~4.25V | |
| Over discharge protection | Over discharge detection voltage
| 2.0~3.3V |
| Over discharge detection delay time | 0.1 S ~ 6S | |
| Over discharge release voltage | 2.1~3.4V | |
| Charge Over current protection | Charge Over current detection current | 1~100A |
| Charge Over current detection delay time | 0.02S~ 6S | |
Discharge Over current protection | Discharge Over current detection current | 1~600A |
Discharge Over current detection delay time
| 0.02S~ 6S | |
Short protection | Short protection detection delay time | 100 u S |
| Detection condition | B+ P-0.2 Omh | |
| restore | Cut off load | |
| Interior Resistance | Main loop electrify resistance | 2 OMh(50A) |
| Currentconsumption | Current consume in normal operation | 1.5mA Type |
| Currentconsumption | Current consume in sleep operation | 2 uA Type |
