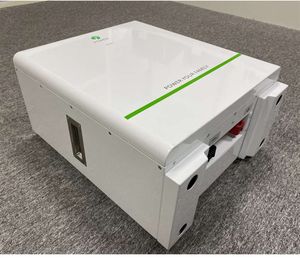

RJ-20K-RB
RJ
RJ-20K-RB
Super 12000CYCLES - 20YEARS WARRANTY - FACTORY PRICE
FOSHAN RJ TECH is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach Super long lifespan >12000cycles at 100%DOD. We offer very goodprice with top quality, our powerwall home battery is 20 years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye,Growatt, Goodwe, Outback etc. look for distributors.
Features: compared with traditional design, this new battery design comes with self rack which will save cost, cusotmer do not need a extra rack or cabinet.
| NO |
Projects |
Specification |
Remark |
| Cell unit parameter | |||
| 1 |
Battery types and materials | LiFePO4 | |
| 2 |
Rated voltage/capacity | 3.2V/100Ah | |
| 3 |
Single battery voltage range | 2.5V～3.65V | |
| 4 |
Single battery weight | 2.85Kg | |
| 5 |
The battery internal resistance | ≤ 0.4mΩ | |
| 6 |
Module size | 174*48*166mm(L*W*H) | |
| Battery parameter | |||
| 1 |
Rated voltage | 51.2V | |
| 2 |
Rated capacity | 400Ah | 100AH |
| 3 |
Battery pack voltage range | 40.0V～58.4V | |
| 4 | (kWh) Total Power | 20kWh | |
| 5 |
Combination | 4P16S | |
| 6 | (Ω) Insulation resistance test value | ≥20MΩ | |
| 7 |
Operating temperature | Charging 0 ~ 45℃； Discharging -30 ~ 60℃ | |
| 8 |
Standard charging current | <50A | 51.2V 100AH |
| 9 |
Standard discharge current | ≤100A | 51.2V 100AH |
| 10 |
Gross weight | ||
| 11 |
Battery Modle size | 490*500*200mm | |
| 12 |
Installation Method | 610*800*1600mm | |
| 13 |
communication | RS485/CAN2.0 | Optional |
Item
| Content | Criterion |
Over charge Protection
| Over charge detection voltage | 3.6~4.25V |
| Over charge detection delay time | 0.1 S ~ 6S | |
| Over charge release voltage | 3.5~4.25V | |
| Over discharge protection | Over discharge detection voltage
| 2.0~3.3V |
| Over discharge detection delay time | 0.1 S ~ 6S | |
| Over discharge release voltage | 2.1~3.4V | |
| Charge Over current protection | Charge Over current detection current | 1~100A |
| Charge Over current detection delay time | 0.02S~ 6S | |
Discharge Over current protection | Discharge Over current detection current | 1~600A |
Discharge Over current detection delay time
| 0.02S~ 6S | |
Short protection | Short protection detection delay time | 100 u S |
| Detection condition | B+ P-0.2 Omh | |
| restore | Cut off load | |
| Interior Resistance | Main loop electrify resistance | 2 OMh(50A) |
| Currentconsumption | Current consume in normal operation | 1.5mA Type |
| Currentconsumption | Current consume in sleep operation | 2 uA Type |
FOSHAN RJ TECH Batteries Certifications
RJ TECH Batteries Installation Cases
What Clients Say about RJ TECH Batteries
RJ TECH ISO9001 Factory Automatic Production Line
RJ TECH Batteries Wooden Package
RJ TECH Batteries Compatible with All Inverters
