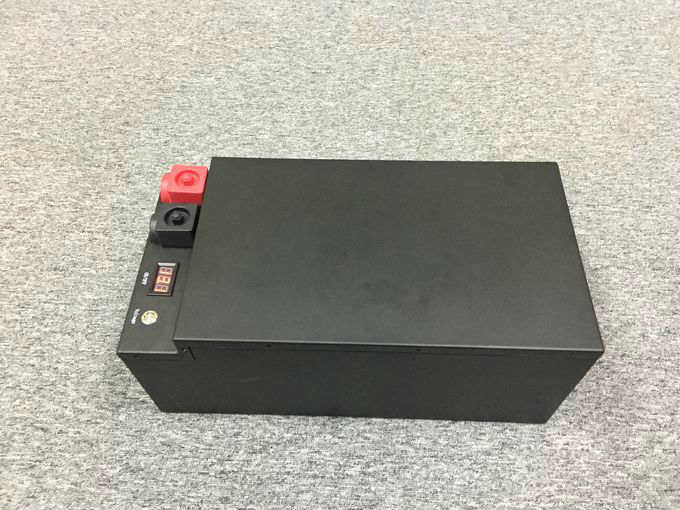

48V 80Ah Lithium Battery LiFeP04 MSDS CE Electric Forklift

48volt 80ah lithium battery cell Lithium ion Battery Module Golf Cart trolley Marine Boat
Material:
Voltage:
Capacity:
Lifecycle:
Quantity:
  • RJ-LFP-4880-P
  • RJ
  • RJ-LFP-4880-P

RJ-6000Cycles


RJ is a lithium battery Manufacturer for over 16years, recognized by customers from Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries cells!


90

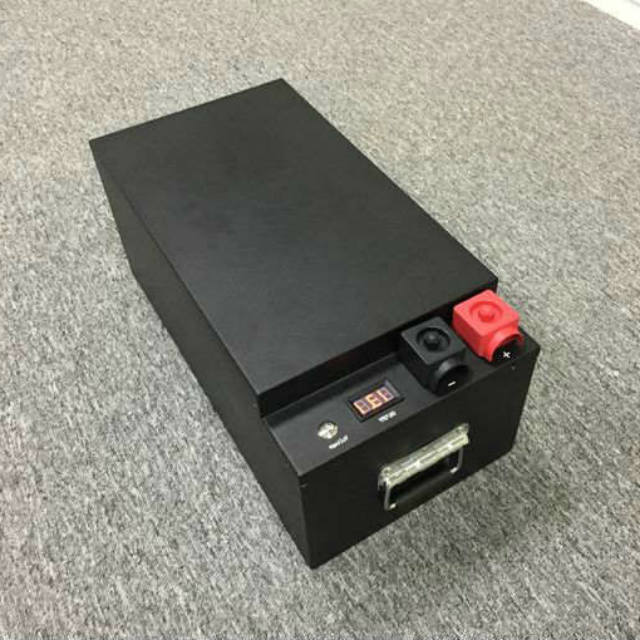

48V80AH-2_meitu_46


Norminal Power(KWh) 48Wh
Norninal Capacity(Ah) 80Ah
Norninal Voltage(V) 48V
Type LiFePO4 Battery
Dimensions (mm) Flexible
Weight(Kg) 48 Kg
Discharging Voltage(V) 40~58.4 V
Discharging Voltage(V) 57.5~58.4 V
Charging 20A
Discharging Current (A) 80A
Communication Port CAN,RS232,RS485 ( Optional)
Working Temperature(℃) 0~55℃
Shelf Temperature(℃) -20~70℃
Humidity 0-95% RH(Non-condensing)
IP Grade (IP) 0-95% RH(Non-condensing)
Altitude ≤3000m
Authentication Level TuV/CE/UL/UN38.3
Design Life(year) 20+ years (@25℃/77℉)
Cycle Life (cycle) >6000Times (100%DOD)



48V80AH-2_meitu_45




Features

•          More than 6000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 5years regular warranty and it can be extended up to 10 years.



BMS

No. Item Test Item Creterion
1 Voltage Charging Voltage DC:58.4V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 20A
Rated continuous discharging current 80A (Peak 160A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 500±50A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃

Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!


With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!



Customize



LIFEPO4 Dimensions Weight with BMS Bluetooth/RS485 Life Cycles Warranty
48V 10AH 195*165*175mm 8kg Yes Available 6000times 5years
48V 20AH 240*158*190mm 14kg Yes Available 6000times 5years
48V 30AH 330*175*220mm 20kg Yes Available 6000times 5years
48V 40AH 330*175*220mm 28kg Yes Available 6000times 5years
48V 50AH 522*237*215mm 33kg Yes Available 6000times 5years
48V 60AH 525*240*215mm 40kg Yes Available 6000times 5years
48V 75AH 522*270*215mm 42kg Yes Available 6000times 5years
48V 80AH 525*273*225mm 48kg Yes Available 6000times 5years
48V 100AH 350*540*160mm 55kg Yes Available 6000times 5years
48V 120AH 442x450x225mm 62kg Yes Available 6000times 5years
48V150AH 442*450*225mm 75kg Yes Available 6000times 5years
48V 200AH 800*500*160mm 100kg Yes Available 6000times 5years
48V 300AH 800*500*350mm 150kg Yes Available 6000times 5years
48V 400AH 800*500*350mm 200kg Yes Available 6000times 5years
48v 500AH Standard 19in Rack 250kg Yes Available 6000times 5years
48V 600AH Standard 19in Rack 300kg Yes Available 6000times 5years
48V 800AH Standard 19in Rack 400kg Yes Available 6000times 5years
48V 1000AH Standard 19in Rack 1000kg Yes Available 6000times 5years




RJ-Applications

app-v




customer reviews

r1

r2

RJ-Warehouse-2

RJ-Warehouse-battery

why RJ

1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 10 years warranty with UL/CE certificate. Professional after-sales service, give instruction on how to use the products.
