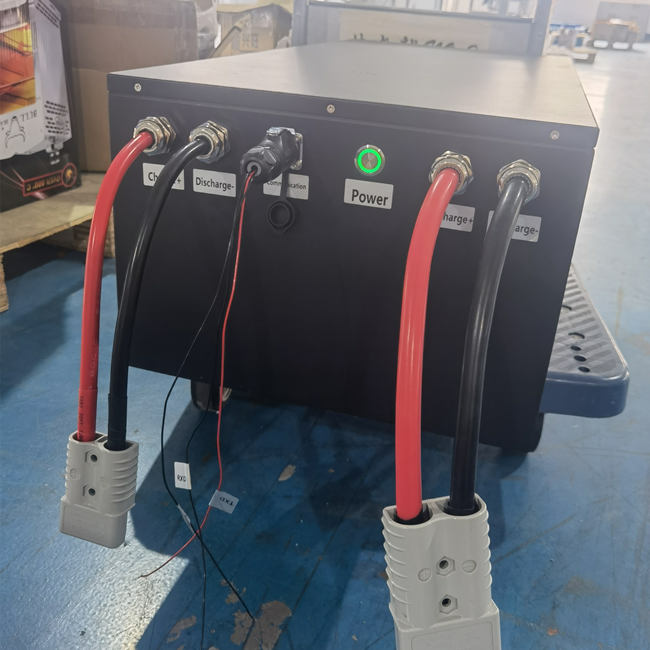

RJ-LFP-48D300-M
RJ
RJ-LFP-48D300-M
8000CYCLES - 10YEARS WARRANTY - FACTORY PRICE
Lithium trolling motor battery is lithium iron phosphate (LiFePO4) deep-cycle battery to power trolling motors.
RJ provide lithium trolling motor batteries 12 volts, 24 volts, 36 volts , 48v voltage, 96volts.
RJ Lithium Marine Batteries is perfectly for propulsion and trolling motors, with a consistent power delivery, lower weight, and longer run-time than traditional lead acid batteries, it is perfect for trolling, electric propulsion, bow thruster and all your electric or hybrid marine needs.
RJ 36 volt lithium trolling motor battery give you the power to fish from morning to night. Engineered with Lithium Iron Phosphate (LiFePo4) technology, RJ Lithium Marine battery has triple the power, half the weight, and lasts 4 times longer than a sealed lead acid battery – providing exceptional Long lifetime>8000cycles.
Norminal Power(KWh) | 15360Wh |
Norninal Capacity(Ah) | 300Ah |
Norninal Voltage(V) | 51.2V |
Type | LiFePO4 Battery |
Dimensions (mm) | Customized |
Weight(Kg) | 140Kg |
Cut off Discharging Voltage(V) | 40V |
Cut off Cischarging Voltage(V) | 58.4V |
Charging Current | 300A |
Discharging Current (A) | 300A |
Working Temperature(℃) | 0~55℃ |
Shelf Temperature(℃) | -20~70℃ |
Humidity | 0-95% RH(Non-condensing) |
IP Grade (IP) | IP66 |
Altitude | ≤3000m |
Authentication Level | TuV/CE/UN38.3 |
Design Life(year) | 30+ years (@25℃/77℉) |
Cycle Life (cycle) | >8000Times |
Features
• More than 8000 Cycles
• Battery modules available for parallel and series for higher voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for your marine boat or RV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
Item
| Content | Criterion |
Over charge Protection
| Over charge detection voltage | 3.6~4.25V |
Over charge detection delay time | 0.1 S ~ 6S | |
Over charge release voltage | 3.5~4.25V | |
Over discharge protection | Over discharge detection voltage
| 2.0~3.3V |
Over discharge detection delay time | 0.1 S ~ 6S | |
Over discharge release voltage | 2.1~3.4V | |
Charge Over current protection | Charge Over current detection current | 1~100A |
Charge Over current detection delay time | 0.02S~ 6S | |
Discharge Over current protection | Discharge Over current detection current | 1~600A |
Discharge Over current detection delay time
| 0.02S~ 6S | |
Short protection | Short protection detection delay time | 100 u S |
Detection condition | B+ P-0.2 Omh | |
restore | Cut off load | |
Interior Resistance | Main loop electrify resistance | 2 OMh(50A) |
Currentconsumption | Current consume in normal operation | 1.5mA Type |
Currentconsumption | Current consume in sleep operation | 2 uA Type |
Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!
With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!
Contact Us Customize your own battery Now!
LIFEPO4 | Dimensions | Weight | with BMS | Bluetooth/RS485 | Life Cycles | Lifespan |
48V 50AH | 522*237*215mm | 33kg | Yes | Available | 8000times | 30years |
48V 60AH | 525*240*215mm | 40kg | Yes | Available | 8000times | 30years |
48V 75AH | 522*270*215mm | 42kg | Yes | Available | 8000times | 30years |
48V 80AH | 525*273*225mm | 48kg | Yes | Available | 8000times | 30years |
48V 100AH | 350*540*160mm | 55kg | Yes | Available | 8000times | 30years |
48V 120AH | 442x450x225mm | 62kg | Yes | Available | 8000times | 30years |
48V150AH | 442*450*225mm | 75kg | Yes | Available | 8000times | 30years |
48V 200AH | 800*500*160mm | 100kg | Yes | Available | 8000times | 30years |
48V 300AH | 800*500*350mm | 150kg | Yes | Available | 8000times | 30years |
48V 400AH | 800*500*350mm | 200kg | Yes | Available | 8000times | 30years |
48v 500AH | Standard 19in Rack | 250kg | Yes | Available | 8000times | 30years |
48V 600AH | Standard 19in Rack | 300kg | Yes | Available | 8000times | 30years |
48V 800AH | Standard 19in Rack | 400kg | Yes | Available | 8000times | 30years |
48V 1000AH | Standard 19in Rack | 1000kg | Yes | Available | 8000times | 30years |
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty with CE certificate. Professional after-sales service, give instruction on how to use the products.
CONTACT US GET A LATEST QUOTE NOW!
