RJ-LFP-48150-AO
RJ
RJ-LFP-48150-AO
8000CYCLES - 15YEARS WARRANTY - FACTORY PRICE
Automated Guided Vehicle System (AGVS) Material handling in manufacturing system is becoming easier as the automated machine technology has improved. One of the material handling methods that has been widely used in most industry now a days is the Automated Guided Vehicle System or better known as the AGVS.
Automated Guided Vehicles (AGV) have pre-set routes within their work environments. Autonomous Mobile Robots (AMR) can adjust their route within their pre-set work environments. RJ performance and safety tested lithium solutions offer the power and energy densities, fast charging, and smart balance-of-system integration functionality needed to power the industry-leading design goals of original equipment manufacturers and the performance and productivity demanded by AGV/AMR outfitters and equipment owners.

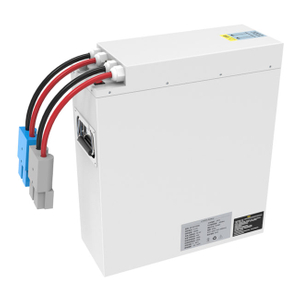

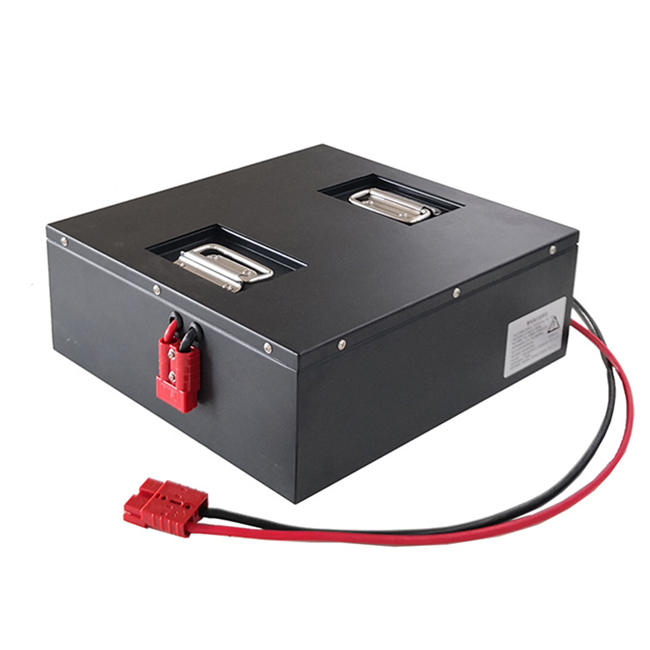

RJ AGV battery usually use 24v 48v battery packs with Bulit-in RS485/CAN BMS, and it enables battery for fast charge, Battery capacity depends on the real needs and size limitation.
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 51.2V |
Nominal Capacity | 50Ah |
Energy | 2560Wh |
Internal Resistance | ≤15mΩ |
Series & Parallel Application | up to 16 parallel connection |
Limited Charge Voltage | 58.4V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 40V |
Charge Current | 50A |
Continuous Discharge Current | 50A |
Pulse Discharge Current | 100A (Peak) |
Cycle Life | > 8000 cycles |
Dimension (mm) | Customized |
Weight | 20Kg |
Communication | RS485/CanBus/Modbus/BT |
Charge Temperature Range | 0~55℃ |
Discharge Temperature Range | -20~65℃ |
Recommended Operating Temperature | 15~55℃ |
Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
Features
• More than 8000 Cycles
• Battery modules available for parallel and series for higher voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP68, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for AGV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
No. | Item | Test Item | Criterion | |
1 | Voltage | Charging Voltage | DC:58.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 50A | |||
Rated continuous discharging current | 50A (Peak 100A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+85℃ |
Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!
With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!
Contact Us Customize your own battery Now!
Voltage | Capacity | Charge | Discharge | Weight | Communication | Lifecycle |
24v | 50ah | 200A | 200A | 10KG | RS485/CANBUS/UART | >8000times |
24v | 105ah | 300A | 300A | 20KG | RS485/CANBUS/UART | >8000times |
24v | 150ah | 300A | 300A | 30KG | RS485/CANBUS/UART | >8000times |
24v | 200ah | 400A | 400A | 43KG | RS485/CANBUS/UART | >8000times |
24v | 228ah | 500A | 500A | 49KG | RS485/CANBUS/UART | >8000times |
36v | 50ah | 200A | 200A | 15KG | RS485/CANBUS/UART | >8000times |
36v | 105ah | 300A | 300A | 30KG | RS485/CANBUS/UART | >8000times |
36v | 150ah | 300A | 300A | 45KG | RS485/CANBUS/UART | >8000times |
36v | 200ah | 400A | 400A | 60KG | RS485/CANBUS/UART | >8000times |
36v | 228ah | 500A | 500A | 68KG | RS485/CANBUS/UART | >8000times |
48v | 50ah | 200A | 200A | 20KG | RS485/CANBUS/UART | >8000times |
48v | 105ah | 300A | 300A | 45KG | RS485/CANBUS/UART | >8000times |
48v | 150ah | 300A | 300A | 60KG | RS485/CANBUS/UART | >8000times |
48v | 200ah | 400A | 400A | 86KG | RS485/CANBUS/UART | >8000times |
48v | 228ah | 500A | 500A | 88KG | RS485/CANBUS/UART | >8000times |
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
CONTACT US GET A LATEST QUOTE NOW!
