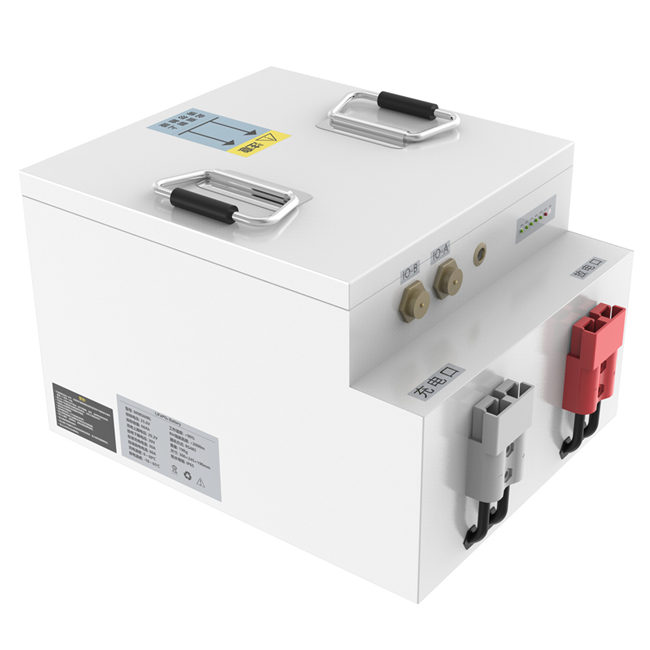

RJ-LFP-24150-AT
RJ
RJ-LFP-24150-AT
8000CYCLES - 10YEARS WARRANTY - FACTORY PRICE
Automated Guided Vehicle System (AGVS) Material handling in manufacturing system is becoming easier as the automated machine technology has improved. One of the material handling methods that has been widely used in most industry now a days is the Automated Guided Vehicle System or better known as the AGVS.

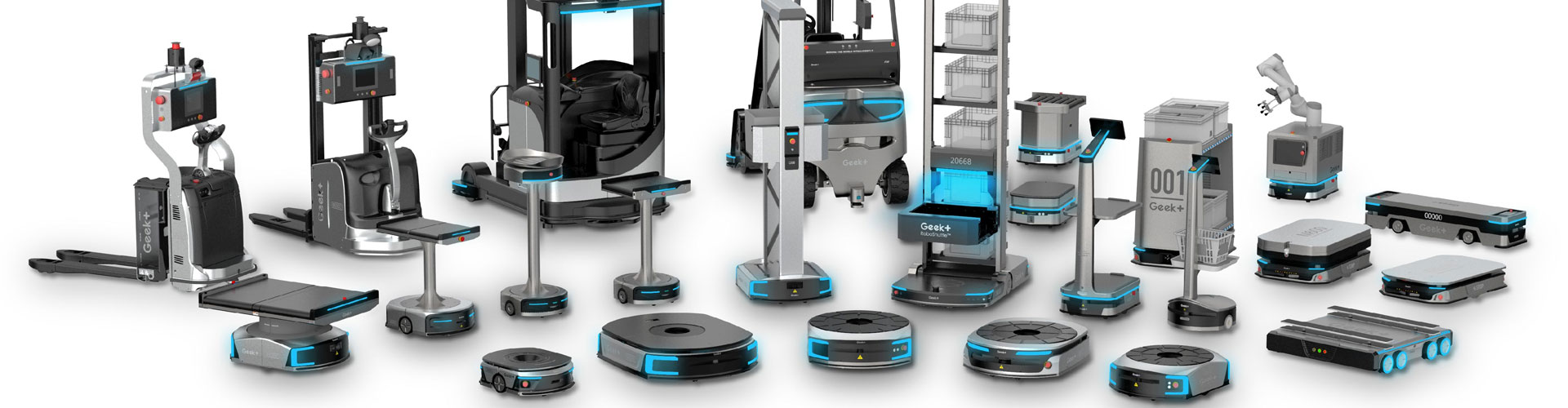

Automated Guided Vehicles (AGV) have pre-set routes within their work environments. Autonomous Mobile Robots (AMR) can adjust their route within their pre-set work environments. RJ performance and safety tested lithium solutions offer the power and energy densities, fast charging, and smart balance-of-system integration functionality needed to power the industry-leading design goals of original equipment manufacturers and the performance and productivity demanded by AGV/AMR outfitters and equipment owners.

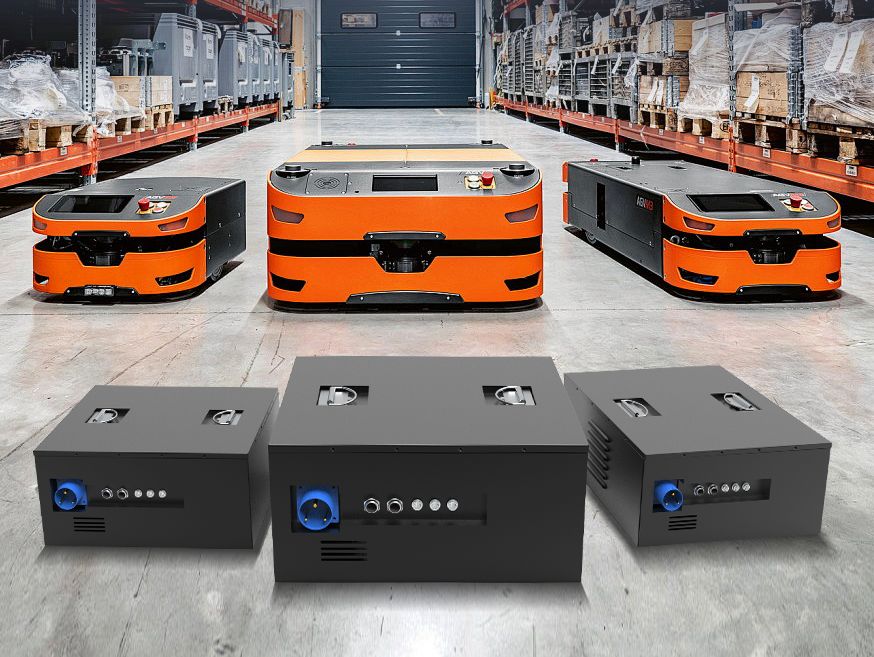

RJ AGV Robot Lithium Battery usually use 24v 48v 80V 220V battery packs with Bulit-in RS485/CAN BMS, and it enables battery for fast charge, Battery capacity depends on the real needs and size limitation.
We has developed advanced Lithium ion rechargeable battery solutions optimized to meet the power, energy, quality and safety requirements for the indoor material handling equipment market. These batteries can directly replace existing lead acid batteries currently used by most suppliers of material handling equipment.

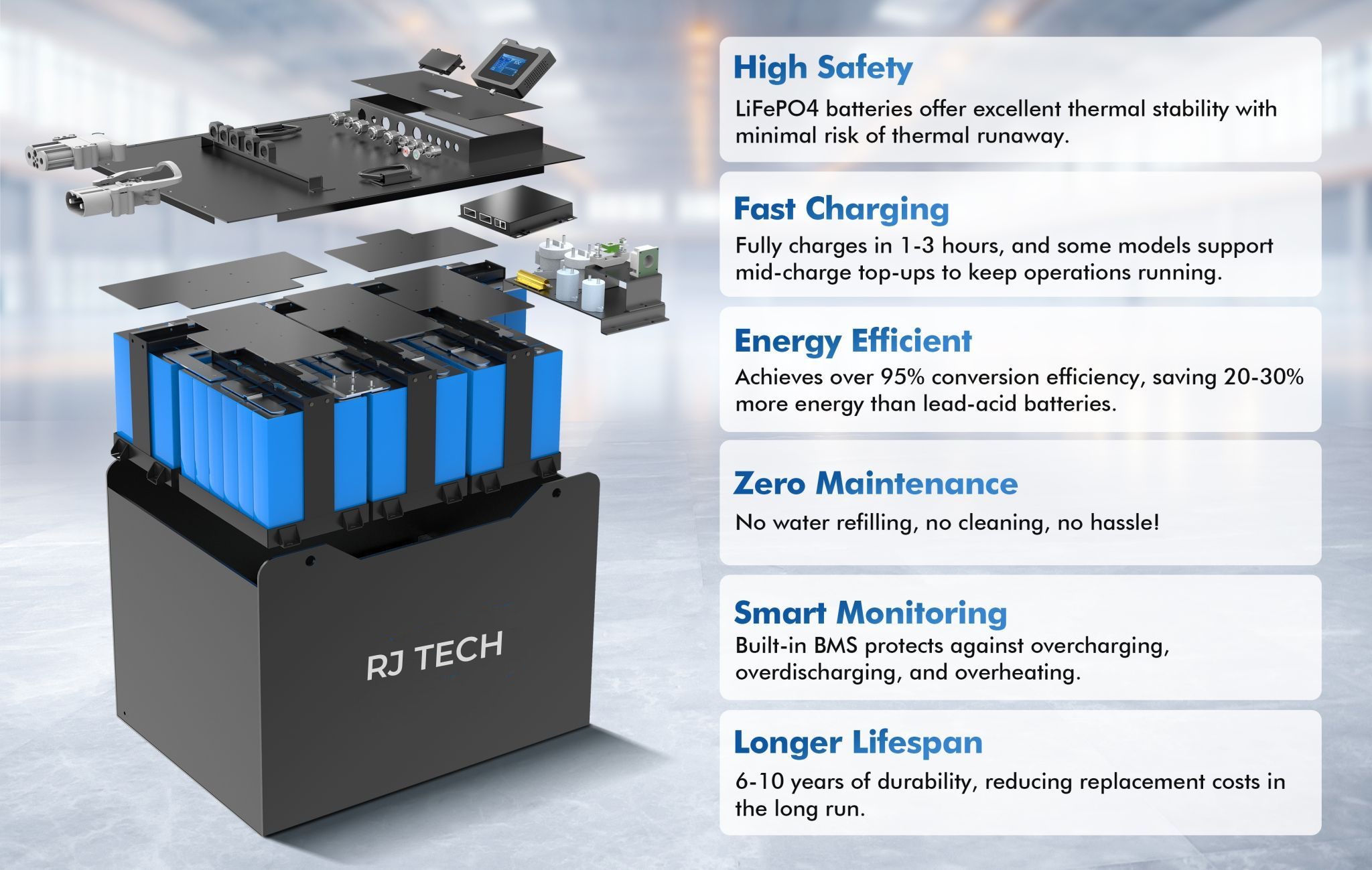

FEATURES:
● Over-charge and over-discharge protection;
● SOC
● Automatic balancing system
● Professional industial design and material
● Wide working temprature
● EMC protection design
● High quality batteries, material specifications and models
● Intelligent BMS protection, communication protocol and interface can be customized
● Automatic laser welding process to ensure connection reliability and meet high current charge and discharge
● Zero maintenance
● Easy installation, light and easy to install
● Quality guaranteed, long serve life
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 150Ah |
| Energy | 3,840Wh |
| Internal Resistance | ≤15mΩ |
| Series & Parallel Application | up to 16 parallel connection |
| Limited Charge Voltage | 29.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 20V |
| Charge Current | 150A (Customizable) |
| Continuous Discharge Current | 150A (Customizable) |
| Pulse Discharge Current | 300A (Peak) |
| Cycle Life | > 8000 cycles |
| Dimension (mm) | Customized |
| Weight | 30Kg |
| Communication | RS485/CanBus/Modbus/BT |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -20~65℃ |
| Recommended Operating Temperature | 15~55℃ |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
| No. | Item | Test Item | Criterion | |
| 1 | Voltage | Charging Voltage | DC:29.4V CC/CV | |
| Balance voltage for single cell | 3.50±0.025V | |||
| 2 | Current | Balance voltage for single cell | 35±5mA | |
| Current consumption | ≤50μA | |||
| Charging current | 150A | |||
| Rated continuous discharging current | 150A (Peak 300A) | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
| Over charge detection delay time | 0.7S—1.3S | |||
| Over charge release voltage for single cell | 3.550±0.05V | |||
| 4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
| Over discharge detection delay time | 1.6±0.5S | |||
| Over discharge release voltage for single cell | 3.00±0.75V | |||
| 5 | Over current Protection | Over current detection current | 500±50A | |
| Over current detection delay time | 1.6±0.5S | |||
| Release condition | Cut load | |||
| 6 | Short Protection | Detection condition | Exterior short circuit | |
| Detection delay time | 230uS—500uS | |||
| Release condition | Cut load | |||
| 7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
| 8 | Temperature | Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+85℃ | |||
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
