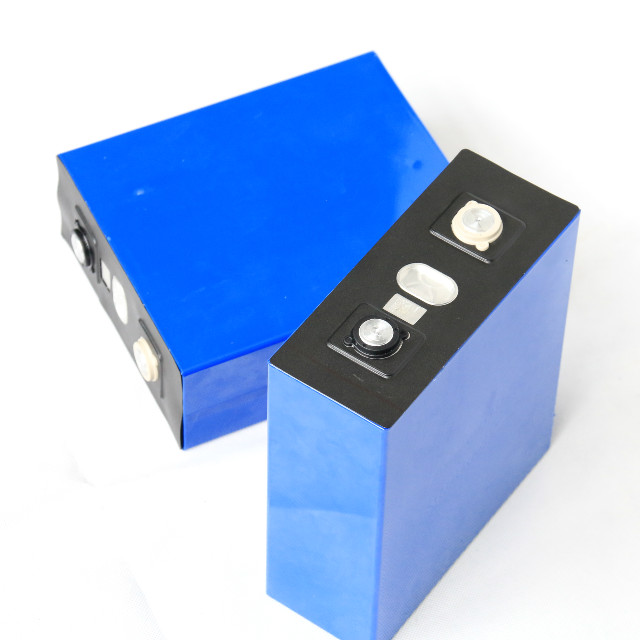

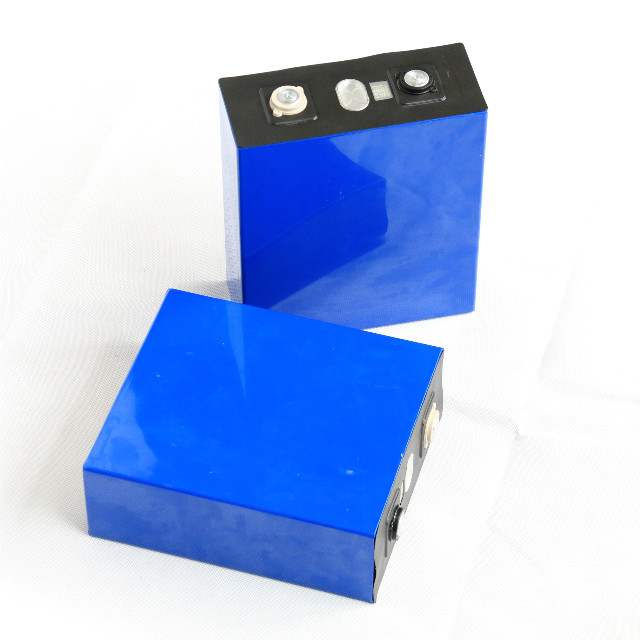

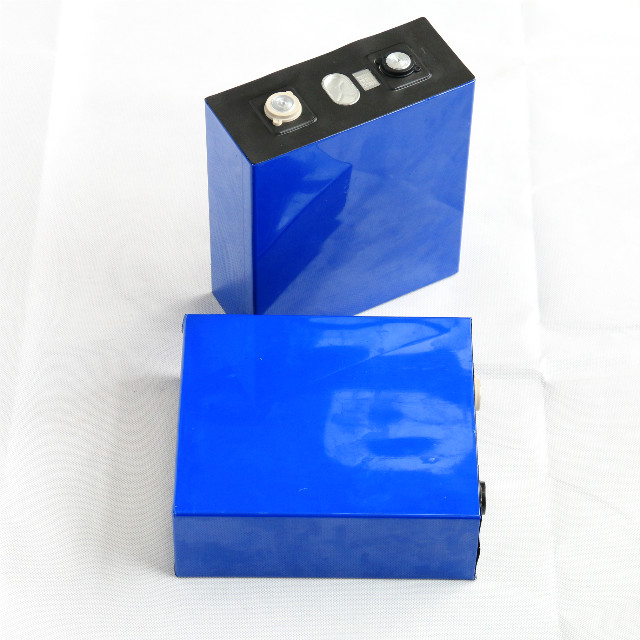

3.2V 80Ah LiFePO4 Cell LiFePO4 Li ion E-Boat Yachts Sightseeing car

OEM ODM available 6000cycles Residential Commercial Energy System
Material:
Voltage:
Capacity:
Dimension:
Availability:
Quantity:
  • RJ-LFP48173126-80

  • RJ

  • RJ-LFP48173126-80

RJ-6000Cycles


RJ is a lithium battery Manufacturer for over 16years, recognized by customers from Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries cells!


90


IMG_3585

Model RJ-LFP48173126-80
Casing material for single cell Aluminum shell
Nominal Voltage 3.2V
Capacity 86Ah
Core size D48*W173*126MM
Cell Weight 2.1kg
Charging Current Standard Charging:0.2C

Max Charging:1C
Max Discharging Rate Max Discharging:2C
Cut-off Voltage Charging:3.65V

Discharging:2.5V
Internal Resistance ≤ 0.5mΩ (At 0.2C rate, 2.0V cut-off)
Working Temperature Charging: -10℃~55℃

Discharging: -20℃~70℃
Storage Temperature ≤1month: -10–45℃

≤3month: 0–30℃

≤6month: 20±5℃
Life Cycle >6000 times

IMG_3587


80ah-1


80ah-2


RJ produce LiFePO4 Prismatic Battery Cell from scratch with various capacity, from 10ah up to 320ah single cells. Perfectly for solar energy storage, electrice golf cart, electric forklift, robotic system AGV, electric vehicles, UPS etc.

RJ battery features its long lifecycles which reach 6000cycles, and we offer 5years Warranty up to 10years, RJ LiFePO4 Lithium Iron Phosphate battery cells also has excellent perfermance in discharge and charge. We are looking for long term business partner all over the world, we will be very supportive on price to help develop your local market on mutual benefit. contact us for a latest pricelist now!


Type   Lifepo4 Dimensions Weight Cycles Warranty
3.2V 10AH D17*W79*H135MM  0.55KG 6000times 5years
3.2V 25AH D20*W100*H140MM  0.95KG 6000times 5years
3.2V 40AH D26*W135*H170MM 1.33KG 6000times 5years
3.2V 42AH D27*W147*H147MM 1.33KG 6000times 5years
3.2V 50AH D32*W173*H127MM 1.42KG 6000times 5years
3.2V 60AH D32*W174*H148MM 1.65KG 6000times 5years
3.2V 75AH D48*W174*H128MM 2.12KG 6000times 5years
3.2V 80AH D48*W173*H126MM 2.12KG 6000times 5years
3.2V 86AH D48*W173*H126MM 2.12KG 6000times 5years
3.2V 92AH D29*W174*H203MM 2.10KG 6000times 5years
3.2V100AH D34*W200*H168MM 2.78KG 6000times 5years
3.2V 120AH D48*W173*H166MM 2.84KG 6000times 5years
3.2V 140AH D46*W200*H168MM 3.10KG 6000times 5years
3.2V 160AH D72*W174*H138MM 3.46KG 6000times 5years
3.2V 176AH D54*W173*H200MM 3.82KG 6000times 5years
3.2V 200AH D71*W173*H166MM 5.00KG 6000times 5years
3.2V 240AH D71*W173*H200MM 5.00KG 6000times 5years
3.2V 271AH D71*W173*H200MM 5.40KG 6000times 5years
3.2V 310AH D72*W174*H204MM 5.50KG 6000times 5years
3.2V 320AH D72*W174*H204MM 5.62KG 6000times 5years


RJ-Applications

app


production line

RJ-Production-line


warehouse

RJ-Warehouse



customer reviews

r1

r2

packing & delivery

Packing

why RJ

1. Quick delivery

Fast delivery is key factor for clients to compete in the market. We attach much importance to quick delivery as much

as we do in our LiFepo4 lithium battery quality. We will keep our clients updated with tracking number all the time and latest tracking info until the order of LiFePO4 lithium Battery arrives at our clients safely.



2. Top quality

As a LiFePO4 lithium battery Manufacturer for over 16years in China, We have been devoting ourselves into innovative

R&D of LiFePO4 Lithium Battery, Top quality is what makes RJ distinguished in todays market and what earns RJ a highly reputation in the international market of LiFepo4 Lithium Battery.



3. Customization Available

We can help customize the charge and discharge characteristics of LiFepo4 lithium battery to meet your specific needs,

 and We can print your company logo on the LifePO4 battery to help advertise your company in the market



4. 7*24 service

Timely and reliable customer service is very important to our clients, which will influence a smooth relationship Therefore, we

are and will always provide very Professional Pre-sales as well as Whole-hearted after-sales service for 24hours a day, 7days a week



5. Reliable Warranty

We offer 5Years warranty for our regular products, and offer 10years warranty for some of our enhanced products. If any defective LiFepo4 battery occur, we will send you a brand new one free of charge, and you do not need to return the defective one because we understand the international shipping fee is too expensive.RJ believe when we do our service with whole heart, We will earn our customers trust and earn our high reputation back!
