FOSHAN RJ TECH 50kwh ON/Off Grid Smart Energy System

Hybrid Inverter, on grid off grid, WiFi Monitor, off peak charging
Lithium Battery:
Smart Inverter:
Solar Panel:
Availability:
Quantity:
  • RJ-50K-S

  • RJ

  • RJ-50K-S

                    8500CYCLES - 15YEARS WARRANTY - FACTORY PRICE


FOSHAN RJ TECH is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 8500cycles at 100%DOD. We offer very good price with top quality, our powerwall home battery is 15years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye,Growatt, Goodwe, Outback etc. look for distributors



90


solar system 7

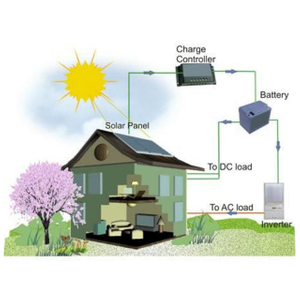

For 50Kwh Solar off grid and On Grid system,  a basic example configuration as below:


  1. 50kwh RJ Powerwall battery

  2. Hybrid Inverter

  3. 15pcs 360W solar panels, together 5400W


Note this system is expansible, plug and play, you can simply add more lithium batteries to make a larger capacity system in the future.

Besides the basic configuration we recommend, you can also do with your own preference. we have different optionsl for you, pLS check out different options in our website:


Self Consumption

Under Self Use mode the energy generated by PV will be mainly used by local loads, and rest will be stored in the battery, excessive power will be feed back into the grid. This is the default mode which will increase the self consumption rate and reduce the energy bill significantly


Force Time Use

This mode suits for situation where the price difference of energy is big. User can set the charging and discharging time and priority of energy use under Force Tim-e Use mode. The user can also choose whether to charge the battery using grid power if the regula-tions permitted.


Off-grid Working Mode

If enabled UPS function, once the grid is protected accidently, the UPS mode will be automatically and seamlessly activated to ensure your important loads keep working without any black out. Due to the specially designed function, it can support the system to work as a back-up power system or off-grid system. Off-grid work-ing mode can also work when there is only PV.

Deye Inverter-1





LV_meitu_4

RJ-solar panels


Type Capacity/W Voltage Size(mm)
L W H
PMS100W 100 18V 880 670 30
PMS120W 120 18V 1070 670 30
PMS150W 150 18V 1480 670 30
PMS160W 160 36V 1480 670 30
PMS170W 170 36V 1480 670 30
PMS180W 180 36V 1070 990 35
PMS190W 190 36V 1070 990 35
PMS200W 200 36V 1170 990 35
PMS240W 240 36V 1320 990 35
PMS250W 250 36V 1400 990 35
PMS260W 260 36V 1480 990 35
PMS270W 270 36V 1530 990 35
PMS280W 280 36V 1580 990 35
PMS290W 290 36V 1580 990 40
PMS320M-72 320 36V 1940 990 40
PMS325M-72 325 36V 1940 990 40
PMS330M-72 330 36V 1940 990 40
PMS335M-72 335 36V 1940 990 40
PMS340M-72 340 36V 1940 990 40
PMS345M-72 345 36V 1940 990 40
PMS350M-72 350 36V 1940 990 40
PMS355M-72 355 36V 1940 990 40
PMS360M-72 360 36V 1940 990 40


RJ-Powerwall

Type   Lifepo4 Type Weight Cycles Warranty RS485
5kwh Wall   mounted 55kg 8500times 15years Available
7kwh Wall   mounted 70kg 8500times 15years Available
10kwh Floor/Wall   Mounted 100kg 8500times 15years Available
15kwh Floor   Mounted 150kg 8500times 15years Available
20kwh Floor/Wall  Mounted 200kg 8500times 15years Available
30kwh Floor/Wall/Rack 300kg 8500times 15years Available
40kwh- Rack   Mounted 400kg 8500times 15years Available
50kwh Rack   Mounted 500kg 8500times 15years Available


Features

•          More than 80500 Cycles @80% DOD ( depth of discharge)

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 15years regular warranty


                     FOSHAN RJ TECH Batteries More Model Available



                                                                     Home Battery Powerwall Battery
Rated Energy Capacity Voltage Installation Communication Weight lifespan Cylces
5KWH 100AH 48V Wall/Floor RS485/Bluetooth 50KG 30years 8000times
10KWH 200AH 48V Wall/Floor RS485/Bluetooth 100KG 30years 8000times
15KWH 300AH 48V Wall/Floor RS485/Bluetooth 150KG 30years 8000times
20KWH 400AH 48V Wall/Floor RS485/Bluetooth 200KG 30years 8000times
25KWH 500AH 48V Wall/Floor RS485/Bluetooth 250KG 30years 8000times
30KWH 600AH 48V Wall/Floor/Rack RS485/Bluetooth 300KG 30years 8000times
35KWH 700AH 48V Wall/Floor/Rack RS485/Bluetooth 350KG 30years 8000times
40KWH 800AH 48V Wall/Floor/Rack RS485/Bluetooth 400KG 30years 8000times
45KWH 900AH 48V Wall/Floor/Rack RS485/Bluetooth 450KG 30years 8000times
50KWH 1000AH 48V Wall/Floor/Rack RS485/Bluetooth 500KG 30years 8000times
55KWH 1100AH 48V Wall/Floor/Rack RS485/Bluetooth 550KG 30years 8000times
60KWH 1200AH 48V Wall/Floor/Rack RS485/Bluetooth 600KG 30years 8000times
65KWH 1300AH 48V Wall/Floor/Rack RS485/Bluetooth 650KG 30years 8000times
70KWH 1400AH 48V Wall/Floor/Rack RS485/Bluetooth 700KG 30years 8000times
75KWH 1500AH 48V Wall/Floor/Rack RS485/Bluetooth 750KG 30years 8000times
80KWH 1600AH 48V Wall/Floor/Rack RS485/Bluetooth 800KG 30years 8000times
85KWH 1700AH 48V Wall/Floor/Rack RS485/Bluetooth 850KG 30years 8000times
90KWH 1800AH 48V Wall/Floor/Rack RS485/Bluetooth 900KG 30years 8000times
100KWH 2000AH 48V Wall/Floor/Rack RS485/Bluetooth 1000KG 30years 8000times
                                           Factory   Price- Customization available- MOQ1pcs-15Years warranty



                       FOSHAN RJ TECH Batteries Certifications

RJ ENERGY Batteries Certification




RJ TECH Batteries Application All Over the World

RJ ENERGY BATTERY REVIEW-1RJ ENERGY BATTERY REVIEW-2RJ ENERGY BATTERY REVIEW-3



                         What Clients Say about RJ TECH Batteries

Foshan-RJ-New-Energy-Technology-Co-Ltd-

RJ ENERGY Batteries Review-2

Foshan-RJ-New-Energy-Technology-Co-Ltd- (3)

Foshan-RJ-New-Energy-Technology-Co-Ltd- (1)



               RJ TECH ISO9001 Factory Automatic Production Line

RJ ENERGY FACTORY-1


RJ ENERGY FACTORY-2


RJ ENERGY FACTORY-3


                            RJ TECH Batteries Wooden Package

RJ ENERGY FACTORY-4


RJ ENERGY FACTORY-5



                  RJ TECH Batteries Compatible with All Inverters

RJ ENERGY Batteries Compatible Inverters



                                       CONTACT US GET A LATEST QUOTE NOW!
