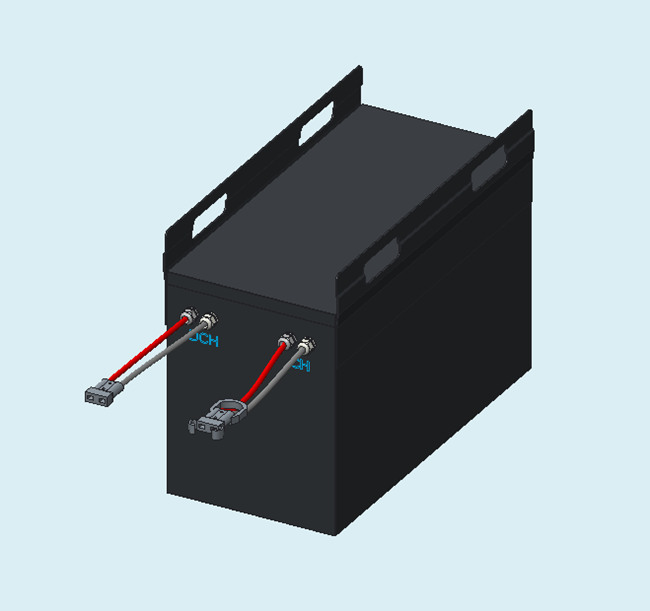

FOSHAN RJ ENERGY 36v 400ah LiFePO4 Forklift Battery Conversion Motive Power Batteries

Charger Accessories available
Material:
Voltage:
Capacity:
Lifecycle:
Availability:
Quantity:
  • RJ-LFP-36D400-F

  • RJ

  • RJ-LFP-36D400-F



                 8000CYCLES - 10YEARS WARRANTY - FACTORY PRICE


As professional forklift battery suppliers, RJ provide customers with lithium forklift battery solutions.

RJ lifepo4 batteries have the characteristics of high energy density, long cycle life, high safety performance, product consistency, and can adapt to a wide range of environments.


We can solve the above two concerns and other specific demands of our customers at the same time.

If you want to be our lithium forklift battery dealer or seek a forklift battery company as a reliable supplier, please contact us.

We will be able to bring lasting support to your career development.


Our forklift battery adopts an intelligent management system that can fully control the system, achieve automatic battery output balance and extend the battery life.

Intelligent thermal management circuit design fully safeguards reliable operation at high and low temperatures.

With the features of maintenance-free, zero-emission, long life, strong power, the batteries ensure the equipment to work stably in the long term.


36v forklift battery-4

Item Specification Note
Nominal Voltage: 36V 24v/36v/48v/80v customizable
Nominal Capacity: 400Ah 200ah - 1200ah customizable
Discharge Cut-Off: 30V
Charge Cut-Off: 43.8V
Charge Current: 200A Relay control,  Rema connector
Cont. Discharge: 200A Relay control
Peak Discharge: 400A
Impedance: ≤200mΩ
Charge Temperature: 0℃ - 45℃
Discharge Temperature: -20℃ - 60℃
Charge Method: CC/CV
Life Cycle: >8000 times
BMS: Smart BMS CANBUS/RS232/RS485 Available
Dimension: Flexible Customizable
Weight: 120KG Customizable, can add balance block to increase weight


36v forklift battery-336v forklift battery-136v forklift battery-2




Features

•          More than 8000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your E-Forklift

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.



BMS

Item



Content Criterion
Over charge
 Protection



Over charge detection voltage 3.6~4.25V
Over charge detection delay time 0.1 S ~ 6S
Over charge release voltage 3.5~4.25V
Over discharge protection

Over discharge detection voltage



2.0~3.3V
Over discharge detection delay time 0.1 S ~ 6S
Over discharge release voltage 2.1~3.4V
Charge
Over current protection
Charge Over current detection current 1~100A
Charge Over current detection delay time 0.02S~ 6S

Discharge

Over current

protection

Discharge Over current detection current 1~600A

Discharge Over current detection delay time



0.02S~ 6S

Short

protection

Short protection detection delay time 100 u S
Detection condition B+ P-0.2 Omh
restore Cut off load
Interior Resistance Main loop electrify resistance 2 OMh(50A)
Currentconsumption Current consume in normal operation 1.5mA Type
Currentconsumption Current consume in sleep operation 2 uA Type


                        FOSHAN RJ ENERGY Batteries More Model Available


Voltage Capacity Charge Discharge Weight Size Lifecycle
24v 200ah 200A 200A 45KG Customizable >8000times
24v 400ah 300A 300A 90KG Customizable >8000times
24v 600ah 300A 300A 120KG Customizable >8000times
24v 800ah 400A 400A 160KG Customizable >8000times
24v 1000ah 500A 500A 200KG Customizable >8000times
36v 200ah 200A 200A 60KG Customizable >8000times
36v 400ah 300A 300A 120KG Customizable >8000times
36v 600ah 300A 300A 180KG Customizable >8000times
36v 800ah 400A 400A 240KG Customizable >8000times
36v 1000ah 500A 500A 300KG Customizable >8000times
48v 200ah 200A 200A 94KG Customizable >8000times
48v 400ah 300A 300A 180KG Customizable >8000times
48v 600ah 300A 300A 270KG Customizable >8000times
48v 800ah 400A 400A 360KG Customizable >8000times
48v 1000ah 500A 500A 450KG Customizable >8000times
80v 200ah 200A 200A 160KG Customizable >8000times
80v 400ah 300A 300A 320KG Customizable >8000times
80v 600ah 300A 300A 480KG Customizable >8000times
80v 800ah 400A 400A 640KG Customizable >8000times
80v 1000ah 500A 500A 800KG Customizable >8000times
