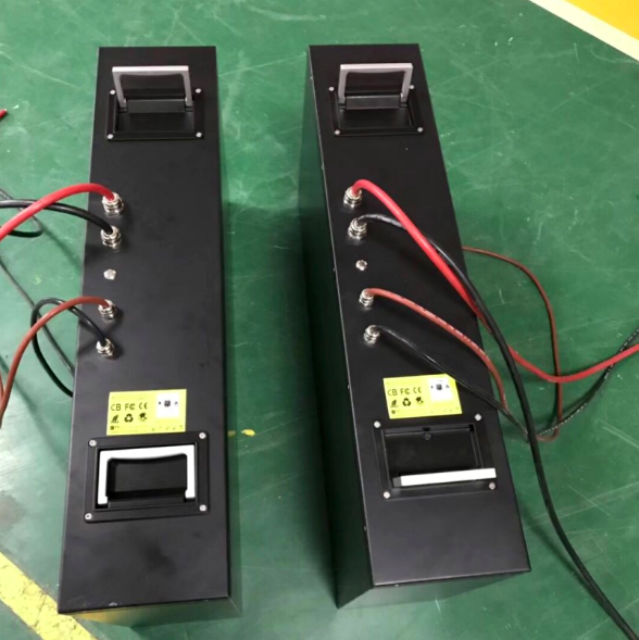

72V 100Ah LiFePO4 Battery Electric Golf Cart Lithium Battery

72V 100Ah lithium battery cell Factory Price OEM ODM Electric Golf Cart EV Battery
Material:
Voltage:
Capacity:
Lifecycle:
Quantity:
  • RJ-LFP-72100-P
  • RJ
  • RJ-LFP-72100-P

RJ-6000Cycles


Compared with 12v Lithium battery connected in series for replacement of  36v/48v/72v AGM/ GEL/ Lead acid,

We highly recommend a direct 48v lithium battery pack, which is more powerful and stable in performance.

RJ OEM for many golf cart battey companies around the world, We can customize any dimensions battery to perfectly meet the battery space in many known golf cart, like Club Car Cushman EZGO Yamaha Star Car Polaris.


RJ is a lithium battery Manufacturer for over 16years, recognized by customers from Australia,Europe and North America.We offer Top quality with very good price for lithium Golf Cart Batteries.


If you are a golf cart dealer or fleet manager, to start offering your customers the best-in-class lithium golf cart battery by becoming a RJ dealer. From no maintenance to faster charge times, lithium batteries have many advantages over lead-acid. RJ Lithium batteries feature easier, smarter and safer to ensure your golf carts, and business, are running at maximum performance.

90


72v120ah-4


Norminal Power(KWh) 7360Wh
Norninal Capacity(Ah) 100Ah
Norninal Voltage(V) 72V
Type LiFePO4 Battery
Dimensions (mm) Customized
Weight(Kg) 73 Kg
Discharging Voltage(V) 57.5~83.9V
Discharging Voltage(V) 57.5~83.9V
Charging 30A
Discharging Current (A) 100A
Working Temperature(℃) 0~55℃
Shelf Temperature(℃) -20~70℃
Humidity 0-95% RH(Non-condensing)
IP Grade (IP) 0-95% RH(Non-condensing)
Altitude ≤3000m
Authentication Level TuV/CE/UL/UN38.3
Design Life(year) 20+ years (@25℃/77℉)
Cycle Life (cycle) >6000Times

72v120ah-2




72v120ah-1


Features

•          More than 6000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 5years regular warranty and it can be extended up to 10 years.



BMS

No. Item Test Item Creterion
1 Voltage Charging Voltage DC:87.6V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 30A
Rated continuous discharging current 100A (Peak 200A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 500±50A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃


Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!


With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!


Customize





LIFEPO4 Dimensions Weight with BMS RS485/Bluetooth Cycles Warranty
72V 10AH 195*165*175mm 13kg Yes Available 6000times 5years
72V 20AH 330*175*220mm 20kg Yes Available 6000times 5years
72V 30AH 485*175*240mm 32kg Yes Available 6000times 5years
72V 40AH 525*240*215mm 43kg Yes Available 6000times 5years
72V 50AH 505*273*225mm 48kg Yes Available 6000times 5years
72V 60AH 350*540*160mm 50kg Yes Available 6000times 5years
72V 70AH 350*540*160mm 58kg Yes Available 6000times 5years
72V 100AH 600*200*300mm 50kg Yes Available 6000times 5years
72V 200AH 179*1448*282mm*2pcs 220kg Yes Available 6000times 5years
72V 300AH 800*400*300mm*2pcs 260kg Yes Available 6000times 5years
