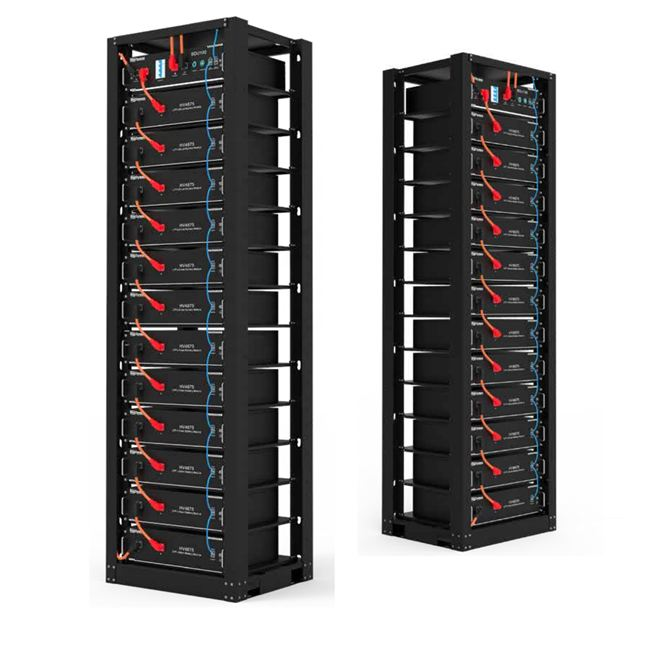

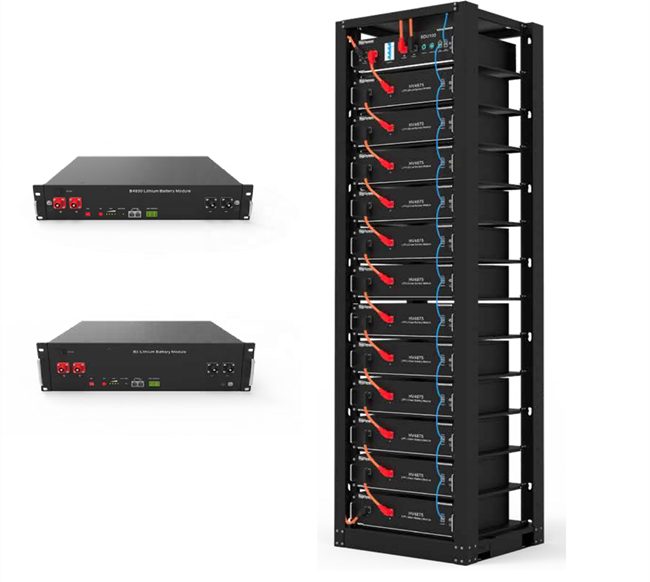

Customize Solution - Full Certified - FACTORY PRICE
RJ has a powerful engineer team who have professional skills in mechanical design, thermal management design, simulation , electric design and software design. Engineering team have more than 10 years experience in battery system design, including many world famous projects for different area around the world. Our worker are well trained in professional skills to ensure the quality and lead time. Battery module are designed for full automatic production line for easy scale up to mass products.
RJ is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 8000cycles at 100%DOD. We offer very good
price with top quality, our powerwall home battery is 15years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye,Growatt, Goodwe, Outback,Invt, Victron, Huawei etc. look for distributors
Model | RJ-480D100-HB |
Norminal Power(KWh) | 48KWh |
Norninal Capacity(Ah) | 100Ah |
Norninal Voltage(V) | 480V |
Material Type | Lithium Battery (LiFePO4) |
Dimensions (mm) | Customized |
Weight(Kg) | 450 Kg |
Discharging Voltage(V) | 375-547.5V |
Max Charging | 1C |
Continuous Discharging (A) | 1C |
Peak Discharging (A) | 2C |
Expansibility | Customizable |
Installation Methode | Rack Mounted |
Communication Port(Optional) | RS485 / RS232/CANBUS |
Working Temperature(℃) | -20~65℃ |
Humidity | 0-95% RH |
IP Grade (IP) | IP65 |
Altitude | ≤3000m |
Authentication Level | TuV/CE/UN38.3 |
Design Life(year) | 30+ years |
Item
| Content | Criterion |
Over charge Protection
| Over charge detection voltage | 3.6~4.25V |
Over charge detection delay time | 0.1 S ~ 6S | |
Over charge release voltage | 3.5~4.25V | |
Over discharge protection | Over discharge detection voltage
| 2.0~3.3V |
Over discharge detection delay time | 0.1 S ~ 6S | |
Over discharge release voltage | 2.1~3.4V | |
Charge Over current protection | Charge Over current detection current | 1~100A |
Charge Over current detection delay time | 0.02S~ 6S | |
Discharge Over current protection | Discharge Over current detection current | 1~600A |
Discharge Over current detection delay time
| 0.02S~ 6S | |
Short protection | Short protection detection delay time | 100 u S |
Detection condition | B+ P-0.2 Omh | |
restore | Cut off load | |
Interior Resistance | Main loop electrify resistance | 2 OMh(50A) |
Currentconsumption | Current consume in normal operation | 1.5mA Type |
Currentconsumption | Current consume in sleep operation | 2 uA Type |
RJ has successfully developed a new version Battery Management System (BMS) for lithium based batteries, which is designed that operates more efficiently and communicates with UART between master and slave modules and can communicate via CAN protocol with external devices.
Micro controller based control and protection equipment is designed that help to measure and monitor the voltage, temperature and current values of the batteries.
They protect the battery cells from the conditions such as over charge, over discharge, high current, high temperature.
BMS balances battery cell voltages during charging process with passive cell voltage balancing.
In addition to the main controller module in the BMS, slave controller modules have been added to provide high resolution voltage and temperature tracking.
A modular BMS has been devised which can be used in groups of batteries of different voltage values thanks to electrically isolated slave control modules.
Master and Slave BMS
CAN communication (optional)
GPS function (optional)
APP for checking battery data (Optional)
Voltage \current\temperature\short circuit protection
Real time dynamic calibration
Multi-method combination
High accuracy measurement of the cell voltage /temperature/pack current
With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!
Contact Us Customize your own battery Now!
Customized High Voltage Battery | |||||
Voltage/volt | Capacity/ah | with BMS | RS485/232/CANBUS | Life Cycles | Lifespan |
128 | 100 | Yes | Available | 8000times | 30years |
160 | 100 | Yes | Available | 8000times | 30years |
192 | 100 | Yes | Available | 8000times | 30years |
224 | 200 | Yes | Available | 8000times | 30years |
256 | 200 | Yes | Available | 8000times | 30years |
288 | 200 | Yes | Available | 8000times | 30years |
320 | 200 | Yes | Available | 8000times | 30years |
352 | 200 | Yes | Available | 8000times | 30years |
384 | 200 | Yes | Available | 8000times | 30years |
416 | 100 | Yes | Available | 8000times | 30years |
448 | 100 | Yes | Available | 8000times | 30years |
480 | 100 | Yes | Available | 8000times | 30years |
512 | 100 | Yes | Available | 8000times | 30years |
544 | 100 | Yes | Available | 8000times | 30years |
576 | 100 | Yes | Available | 8000times | 30years |
608 | 100 | Yes | Available | 8000times | 30years |
640 | 100 | Yes | Available | 8000times | 30years |
672 | 100 | Yes | Available | 8000times | 30years |
704 | 100 | Yes | Available | 8000times | 30years |
736 | 100 | Yes | Available | 8000times | 30years |
768 | 100 | Yes | Available | 8000times | 30years |
800 | 100 | Yes | Available | 8000times | 30years |
832 | 100 | Yes | Available | 8000times | 30years |
864 | 100 | Yes | Available | 8000times | 30years |
896 | 100 | Yes | Available | 8000times | 30years |
928 | 100 | Yes | Available | 8000times | 30years |
960 | 100 | Yes | Available | 8000times | 30years |
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
CONTACT US GET A LATEST QUOTE NOW!
