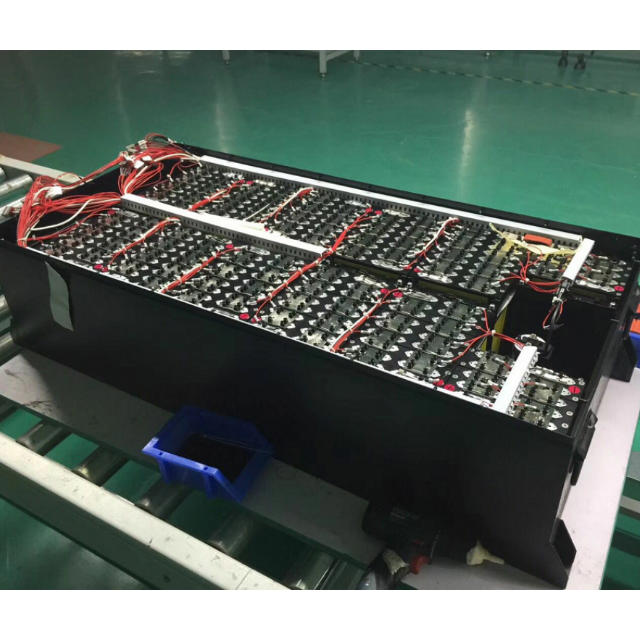

RJ-LFP-36400-T
RJ
RJ-LFP-36400-T
8000CYCLES - 15YEARS WARRANTY - FACTORY PRICE
Lithium batteries have the advantages of light weight and low maintenance, making them the preferred choice for power supply for low speed electric vehicles. Since the lithium battery can provide the same voltage as the lead-acid battery, the user does not need to modify the electric golf cart or the E-forklift E-boat.
Lithium iron phosphate batteries have become a new trend in industrial batteries. Compared with traditional lead-acid batteries, lithium batteries have a large qualitative change and are a more environmentally friendly energy solution.
Although the initial battery replacement cost is slightly higher, the advantages of lithium batteries will save users more money during later use.
Norminal Power(KWh) | 15280Wh |
Norninal Capacity(Ah) | 400Ah |
Norninal Voltage(V) | 36V |
Type | LiFePO4 Battery |
Dimensions (mm) | Customized |
Weight(Kg) | 150Kg |
Cut off Discharging Voltage(V) | 30V |
Cut off Cischarging Voltage(V) | 43.8V |
Charging Current | 100A |
Discharging Current (A) | 400A |
Working Temperature(℃) | 0~55℃ |
Shelf Temperature(℃) | -20~70℃ |
Humidity | 0-95% RH(Non-condensing) |
IP Grade (IP) | 0-95% RH(Non-condensing) |
Altitude | ≤3000m |
Authentication Level | TuV/CE/UN38.3 |
Design Life(year) | 20+ years (@25℃/77℉) |
Cycle Life (cycle) | >8000Times |
Features
• More than 8000 Cycles
• Battery modules available for parallel and series for higher voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for your marine boat or RV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
No. | Item | Test Item | Criterion | |
1 | Voltage | Charging Voltage | DC:43.8V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 100A | |||
Rated continuous discharging current | 400A (Peak 8000A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+85℃ |
Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!
With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!
Contact Us Customize your own battery Now!
LIFEPO4 | Dimensions | Weight | With BMS | RS485/Bluetooth | Lifespan |
36V 10AH | 165*125*175mm | 6.5kg | Yes | Available | >20years |
36V 20AH | 240*158*190mm | 9kg | Yes | Available | >20years |
36V 30AH | 195*165*175mm | 14kg | Yes | Available | >20years |
36V 40AH | 330*175*220mm | 18kg | Yes | Available | >20years |
36V 50AH | 330*175*220mm | 22kg | Yes | Available | >20years |
36V 60AH | 485*175*240mm | 30kg | Yes | Available | >20years |
36V 70AH | 525*275*220mm | 34kg | Yes | Available | >20years |
36V 80AH | 525*275*220mm | 40kg | Yes | Available | >20years |
36V 100AH | 522*270*215mm | 36kg | Yes | Available | >20years |
36V 200AH | 530*495*425mm | 85kg | Yes | Available | >20years |
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
CONTACT US GET A LATEST QUOTE NOW!
