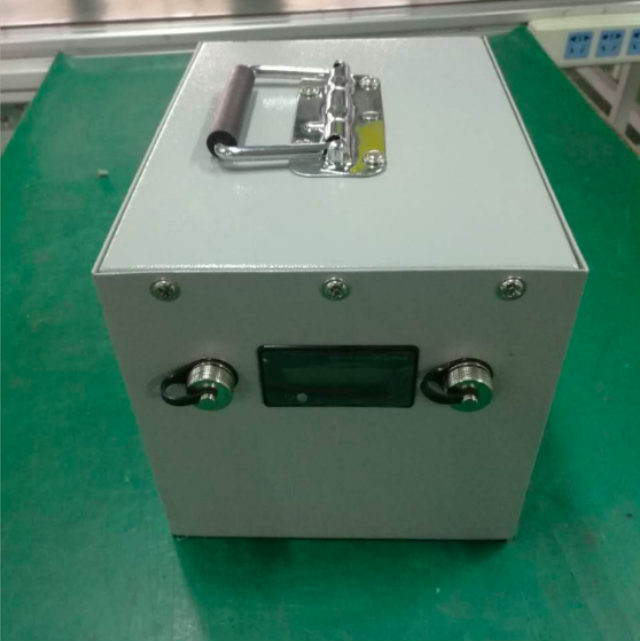

36V 60Ah Lithium Ion Battery LiFepo4 with BMS For Electric wheelchairs Golf Car Trolley

36V 60Ah LiFePO4 Battery Lithium Iron Phosphate For Electric AGV Golf Cart Looking For Distributors
Material:
Voltage:
Capacity:
Lifecycle:
Availability:
Quantity:
  • RJ-LFP-3660-D

  • RJ

  • RJ-LFP-3660-D


              8000CYCLES - 10YEARS WARRANTY - FACTORY PRICE


Automated Guided Vehicle System (AGVS) aterial handling in manufacturing system is becoming easier as the automated machine technology has improved. One of the material handling methods that has been widely used in most industry now a days is the Automated Guided Vehicle System or better known as the AGVS.



Automated Guided Vehicles (AGV) have pre-set routes within their work environments. Autonomous Mobile Robots (AMR) can adjust their route within their pre-set work environments. RJ performance and safety tested lithium solutions offer the power and energy densities, fast charging, and smart balance-of-system integration functionality needed to power the industry-leading design goals of original equipment manufacturers and the performance and productivity demanded by AGV/AMR outfitters and equipment owners.



RJ AGV Robot Lithium Battery usually use 24v 48v 80V 220V battery packs with Bulit-in RS485/CAN BMS, and it enables battery for fast charge, Battery capacity depends on the real needs and size limitation.




We has developed advanced Lithium ion rechargeable battery solutions optimized to meet the power, energy, quality and safety requirements for the indoor material handling equipment market. These batteries can directly replace existing lead acid batteries currently used by most suppliers of material handling equipment.



FEATURES:


● Over-charge and over-discharge protection;

● SOC

● Automatic balancing system

● Professional industial design and material

● Wide working temprature

● EMC protection design

● High quality batteries, material specifications and models

● Intelligent BMS protection, communication protocol and interface can be customized

● Automatic laser welding process to ensure connection reliability and meet high current charge and discharge

● Zero maintenance

● Easy installation, light and easy to install

● Quality guaranteed, long serve life


90


36v60ah-2


Norminal Power(KWh) 2304Wh
Norninal Capacity(Ah) 60Ah
Norninal Voltage(V) 36V
Type LiFePO4 Battery
Dimensions (mm) Customized
Weight(Kg) 23Kg
Cut off Discharging Voltage(V) 30V
Cut off Cischarging Voltage(V) 43.8V
Charging Current 20A
Discharging Current (A) 50A
Working Temperature(℃) 0~55℃
Shelf Temperature(℃) -20~70℃
Humidity 0-95% RH(Non-condensing)
IP Grade (IP) 0-95% RH(Non-condensing)
Altitude ≤3000m
Authentication Level TuV/CE/UN38.3
Design Life(year) 20+ years (@25℃/77℉)
Cycle Life (cycle) >6000Times

36v60ah-3




36v60ah-1


BMS

No. Item Test Item Creterion
1 Voltage Charging Voltage DC:43.8V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 20A
Rated continuous discharging current 50A (Peak 100A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 500±50A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃


                                                                      More Models Available




LIFEPO4 Dimensions Weight With BMS RS485/Bluetooth Cycles Warranty
36V 10AH 165*125*175mm 6.5kg Yes Available 6000times 5years
36V 20AH 240*158*190mm 9kg Yes Available 6000times 5years
36V 30AH 195*165*175mm 14kg Yes Available 6000times 5years
36V 40AH 330*175*220mm 18kg Yes Available 6000times 5years
36V 50AH 330*175*220mm 22kg Yes Available 6000times 5years
36V 60AH 485*175*240mm 30kg Yes Available 6000times 5years
36V 70AH 525*275*220mm 34kg Yes Available 6000times 5years
36V 80AH 525*275*220mm 40kg Yes Available 6000times 5years
36V 100AH 522*270*215mm 36kg Yes Available 6000times 5years
36V 200AH 530*495*425mm 85kg Yes Available 6000times 5years
