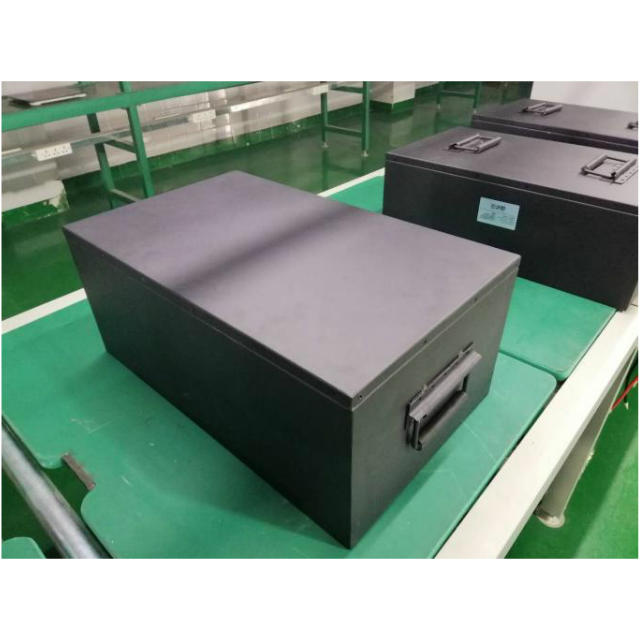

24V 500Ah LiFePO4 Battery Off Grid Solar System RV Boat Camper Vans Car

24V 500Ah LiFePO4 Lithium Battery Off Grid Solar Energy Storage ESS System

Material:
Voltage:
Capacity:
Lifecycle:
Quantity:
  • RJ-LFP-24500-M
  • RJ
  • RJ-LFP-24500-M

RJ-6000Cycles


RJ is a lithium battery Manufacturer for over 16years, recognized by customers from Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries cells!


90


24V600AH-1



Items Parameter
Battery Type LiFePO4
Nominal Voltage 25.6V
Nominal Capacity 500Ah
Energy 12,800Wh
Internal Resistance ≤15mΩ
Series & Parallel Application up to 10 parallel connected application
Limited Charge Voltage 29.2V
Floating Charge Voltage 20V
Charge Method CC/CV
Discharge Cut-off Voltage 20V
Charge Current 100A (Customizable)
Continuous Discharge Current 500A (Customizable)
Pulse Discharge Current 1000A (Peak)
Cycle Life > 6000 cycles @80%DOD
Dimension (mm) Customizable ( can made with cabinet)
Weight 12.6Kg
Charge Temperature Range 0~45℃
Discharge Temperature Range -20~60℃
Recommended Operating Temperature 15~35℃
Self-Discharge Rate (Residual capacity) ≤3%/month; ≤15%/years
Self-Discharge Rate (Reversible capacity) ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range (Less than 1 month) -20~35℃, 45~75%RH
Storage Temperature & Humidity Range (Less than 3 months) -10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range 15~35℃,45~75%RH


24V600AH-2


24V600AH-4



Features

•          More than 6000 Cycles @80% DOD ( depth of discharge)

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 5years regular warranty and it can be extended up to 10 years.



BMS


BMS-2



No. Item Test Item Creterion
1 Voltage Charging Voltage DC:14.4V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 100A
Rated continuous discharging current 500A (Peak 1000A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 500±50A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+125℃

Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!



With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!



Customize





LIFEPO4 Dimensions Weight with BMS Bluetooth/RS485 Life Cycles Warranty
24v 10AH 98*165*175mm 2kg Yes Available 6000times 5years
24v 20AH 120*158*190mm 5kg Yes Available 6000times 5years
24v 30AH 165*175*220mm 8kg Yes Available 6000times 5years
24v 40AH 165*175*220mm 10kg Yes Available 6000times 5years
24v 50AH 265*237*215mm 13kg Yes Available 6000times 5years
24v 60AH 265*240*215mm 15kg Yes Available 6000times 5years
24v 75AH 261*270*215mm 18kg Yes Available 6000times 5years
24v 80AH 260*273*225mm 20kg Yes Available 6000times 5years
24v 100AH 175*540*160mm 25kg Yes Available 6000times 5years
24v 120AH 221x450x225mm 30kg Yes Available 6000times 5years
24v150AH 221*450*225mm 38kg Yes Available 6000times 5years
24v 200AH 400*500*160mm 50kg Yes Available 6000times 5years
24v 300AH 400*500*350mm 75kg Yes Available 6000times 5years
24v 400AH 400*500*350mm 100kg Yes Available 6000times 5years
24v 500AH Standard 19in Rack 125kg Yes Available 6000times 5years
24v 600AH Standard 19in Rack 150kg Yes Available 6000times 5years
24v 800AH Standard 19in Rack 200kg Yes Available 6000times 5years
24v 1000AH Standard 19in Rack 250kg Yes Available 6000times 5years






RJ-Applications

app-v


20190907010201_79644

RJ Certificates


production line

RJ-Production-line



customer reviews

r1

r2

RJ-Warehouse-2

RJ-Warehouse-battery

packing & delivery

Packing

why RJ

1. Quick delivery

Fast delivery is key factor for clients to compete in the market. We attach much importance to quick delivery as much

as we do in our LiFepo4 lithium battery quality. We will keep our clients updated with tracking number all the time and latest tracking info until the order of LiFePO4 lithium Battery arrives at our clients safely.



2. Top quality

As a LiFePO4 lithium battery Manufacturer for over 16years in China, We have been devoting ourselves into innovative

R&D of LiFePO4 Lithium Battery, Top quality is what makes RJ distinguished in todays market and what earns RJ a highly reputation in the international market of LiFepo4 Lithium Battery.



3. Customization Available

We can help customize the charge and discharge characteristics of LiFepo4 lithium battery to meet your specific needs,

 and We can print your company logo on the LifePO4 battery to help advertise your company in the market



4. 7*24 service

Timely and reliable customer service is very important to our clients, which will influence a smooth relationship Therefore, we

are and will always provide very Professional Pre-sales as well as Whole-hearted after-sales service for 24hours a day, 7days a week



5. Reliable Warranty

We offer 5Years warranty for our regular products, and offer 10years warranty for some of our enhanced products. If any defective LiFepo4 battery occur, we will send you a brand new one free of charge, and you do not need to return the defective one because we understand the international shipping fee is too expensive.RJ believe when we do our service with whole heart, We will earn our customers trust and earn our high reputation back!
