FOSHAN RJ TECH 60kwh 3Phase Energy Storage System

                      8500CYCLES - 15YEARS WARRANTY - FACTORY PRICE

FOSHAN RJ TECH is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 8500cycles at 100%DOD. We offer very good price with top quality, our powerwall home battery is 15years warranty. our battery compatible with nearly all kinds of Inverters, SMA, Solar edge, Sunny island, Deye,Growatt, Goodwe, Outback etc. look for distributors

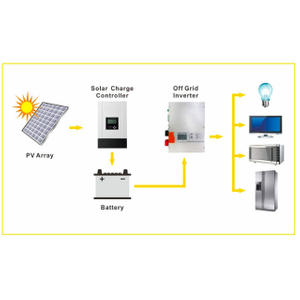

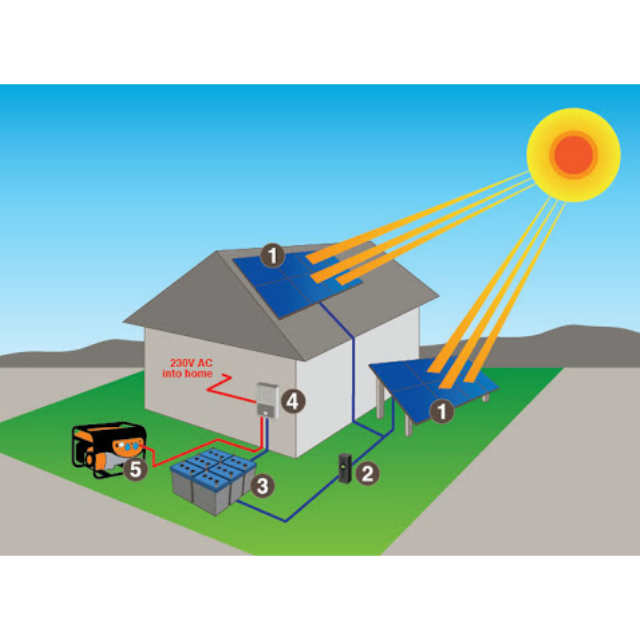

For 60Kwh Solar 3phase Industrial Energy Battery system,  a basic example configuration as below：

1. 60kwh RJ Powerwall battery

2. 45KW RJ 3phase Inverter

3. 30pcs 360W solar panels, together 10800W

4. 2pcs, solar charger mppt 100A




Note this system is expansible, plug and play, you can simply add more lithium batteries to make a larger capacity system in the future.

Besides the basic configuration we recommend, you can also do with your own preference. we have different optionsl for you, pLS check out different options in our website:

RJ TPP Electrical Specifications

Model

TPP 3KW

TPP 4.5KW

TPP 6KW

TPP 9KW

TPP 12KW

TPP 15KW

TPP 18KW

TPP 24KW

TPP 30KW

TPP 36KW

TPP 45KW

Inverter Output

Continuous Output Power

3000W

4500W

6000W

9000W

12000W

15000W

18000W

24000W

30000W

36000W

45000W

Surge Rating(20s)

9000W

13500W

18000W

27000W

36000W

45000W

54000W

72000W

90000W

108000W

135000W

Capable of Starting Electric Motor

3HP

4.5HP

6HP

9HP

12HP

15HP

18HP

24HP

30HP

36HP

45HP

Unbalance Load Acceptable

100%

DC Input Voltage

12.0/24.0/48.0Vdc

24.0/48.0Vdc

48Vdc

Output Waveform

Pure Sine wave/Same as input(Bypass mode)

Nominal Efficiency

89%(Peak)

Line Mode Efficiency

>95%

Power Factor

0.9-1.0

Connection mode

3-phase 4-wire system+Gnd

Output voltage rating

3AC/N 400V/207V

Output phase voltage

120/ 230VAC

230VAC

Output Voltage Regulation

±10% RMS

Output Frequency

50/60Hz ± 0.3Hz

Short Circuit Protection

Yes, Current Limit Function (Fault after 60ms)

Typical transfer Time

Typical 6-8ms,10ms(Max)

THD

< 3%（Linear Load）

DC Input

Nominal Input Voltage

12.0/24.0/48.0Vdc

24.0/48.0Vdc

48Vdc

Minimum Start Voltage

10.5Vdc / 11.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Alarm

10.5Vdc / 11.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Trip

10.0Vdc / 10.5Vdc ( *2 for 24Vdc, *4 for 48Vdc)

High Voltage Alarm & Fault

16.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

High DC Input Recovery

15.5Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Voltage Recover

13.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Idle Consumption-Search Mode

< 100 W when Power Saver On

Charge

Input Voltage Range

Narrow: 96~132VAC / 184~253VAC;Wide: 70~135VAC / 140-270VAC;

Input Frequency Range

Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz Wide:40-70±0.3Hz  for 50Hz/60Hz

Output Voltage

Same as input

Charger Breaker Rating(230Vac)

10A

10A

10A

20A

20A

30A

30A

40A

50A

60A

80A

Charger Breaker Rating(120Vac)

10A

20A

20A

30A

40A

50A

60A

Max Charge Rate

40A*3

60A*3

80A*3

120A*3

160A*3

100A*3

120A*3

80A*3

100A*3

120A*3

150A*3

1/2 for 24Vdc, 1/4 for 48Vdc

1/2 for 48Vdc

48Vdc

Power Factor

0.97 MAX

Over Charge Protection Shutdown

15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Battery type

Fast Vdc

Float Vdc

Gel U.S.A

14.0

13.7

A.G.M 1

14.1

13.4

A.G.M 2

14.6

13.7

Sealed Lead Acid

14.4

13.6

Gel Euro

14.4

13.8

Open Lead Acid

14.8

13.3

Calcium

15.1

13.6

De-sulphation

15.5 for 4hrs

Remote Control

Yes. Optional（LED/LCD）

Bypass & Protection

Input Voltage Waveform

Sine wave (Grid or Generator)

Nominal Voltage

120Vac

230Vac

Low Voltage Trip

70V/96V±4%

184V/154V±4%

Low Voltage re engage

75V/100V±4%

194V/164V±4%

High Voltage Trip

130V±4%

253V/260V±4%

High Voltage re engage

135V±4%

243V/270V±4%

Max Input AC Voltage

150VAC

300VAC

Nominal Input Frequency

50Hz or 60Hz (Auto detect)

Low Freq Trip

Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz Wide:40±0.3Hz for 50Hz/60Hz

Low Freq re engage

Narrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz Wide:42±0.3Hz for 50Hz/60Hz

High Freq Trip

Narrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz Wide:70±0.3Hz for 50Hz/60Hz

High Freq re engage

Narrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz Wide:68±0.3Hz for 50Hz/60Hz

Output Short circuit protection

Circuit breaker

Bypass breaker rating(230Vac)

10A

10A

10A

20A

20A

30A

30A

40A

50A

60A

80A

Bypass breaker rating(120Vac)

10A

20A

20A

30A

40A

50A

60A

Other

Communication methods

RS232/458/CAN

Display

LED+LCD



Type	Capacity/W	Voltage	Size(mm)
			L	W	H
PMS100W	100	18V	880	670	30
PMS120W	120	18V	1070	670	30
PMS150W	150	18V	1480	670	30
PMS160W	160	36V	1480	670	30
PMS170W	170	36V	1480	670	30
PMS180W	180	36V	1070	990	35
PMS190W	190	36V	1070	990	35
PMS200W	200	36V	1170	990	35
PMS240W	240	36V	1320	990	35
PMS250W	250	36V	1400	990	35
PMS260W	260	36V	1480	990	35
PMS270W	270	36V	1530	990	35
PMS280W	280	36V	1580	990	35
PMS290W	290	36V	1580	990	40
PMS320M-72	320	36V	1940	990	40
PMS325M-72	325	36V	1940	990	40
PMS330M-72	330	36V	1940	990	40
PMS335M-72	335	36V	1940	990	40
PMS340M-72	340	36V	1940	990	40
PMS345M-72	345	36V	1940	990	40
PMS350M-72	350	36V	1940	990	40
PMS355M-72	355	36V	1940	990	40
PMS360M-72	360	36V	1940	990	40

Type   Lifepo4	Type	Weight	Cycles	Warranty	RS485
5kwh	Wall   mounted	55kg	8500times	15years	Available
7kwh	Wall   mounted	70kg	8500times	15years	Available
10kwh	Floor/Wall   Mounted	100kg	8500times	15years	Available
15kwh	Floor   Mounted	150kg	8500times	15years	Available
20kwh	Floor/Wall  Mounted	200kg	8500times	15years	Available
30kwh	Floor/Wall/Rack	300kg	8500times	15years	Available
40kwh-	Rack   Mounted	400kg	8500times	15years	Available
50kwh	Rack   Mounted	500kg	8500times	15years	Available

Features

•          More than 8500 Cycles @100% DOD ( depth of discharge)

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 15years regular warranty
