Dc Charging Pile 180KW Double Gun Ocpp1.6 Floor-Mounted Dc Fast Charging Station for Ev Cars

High Safety - Dual protection to both manual operation and vehicles
Power:
Installation:
Connector:
Input Voltage:
Availability:
Quantity:
  • RJ-DC180K-EU-P1

  • RJ TECH

  • RJ-DC180K-EU-P1


                       DC EV Charger- OEM/ODM-Compatible with all EVs


RJ TECH DC EV charger is equipped with 2 DC charging connectors, which supports the output at a maximum of 1000V. Output voltage 200-1000V, Constant output voltage 300-1000V. Support high power charging and can output at 60kW-480KW continuously. Compatible with all EVs in the market and meet future demands.It is suitable to various charging scenarios and also meet most of EVs’ charging needs in the market with small footprint.


With the highlighted PV linkage charge mode that is driven by solar, charge your car with 100% renewable energy, the EV will be charged by the surplus solar power dynamically, combining PV and EV charger together to maximize the solar self-consumption rate and cut your bill.


Features:'


- Easily integrated into solar storage system, charge EVs with renewable energy

- Compatible with ALL brand EVs, including various passenger cars and large vehicles

- Plug&play, Smart load balancing

- Lan, WiFi or 4G, OCPP1.6 for smart charging and remote upgrade OCPP1.6

- Type A RCD + 6mA DC fault current protection

- IP 54 protection for outdoors

- Isolated air duct glue filling module, extremely low failure rate

- G4 filter configuration, good protection effect, simple maintenance

- Advanced high-quality components, Super long life

- Extremely Safe & Reliable, emergency stop protection,  lightning arresters, leakage, grounding, insulation detection etc.

- Automatic, fixed time, fixed amount, fixed power, fixed SOC charging settlement modes,  equalizing charging, timed charging

-Multi-pile ring network connection, flexible power distribution within the network, remote control, diagnosis and OTA upgrade

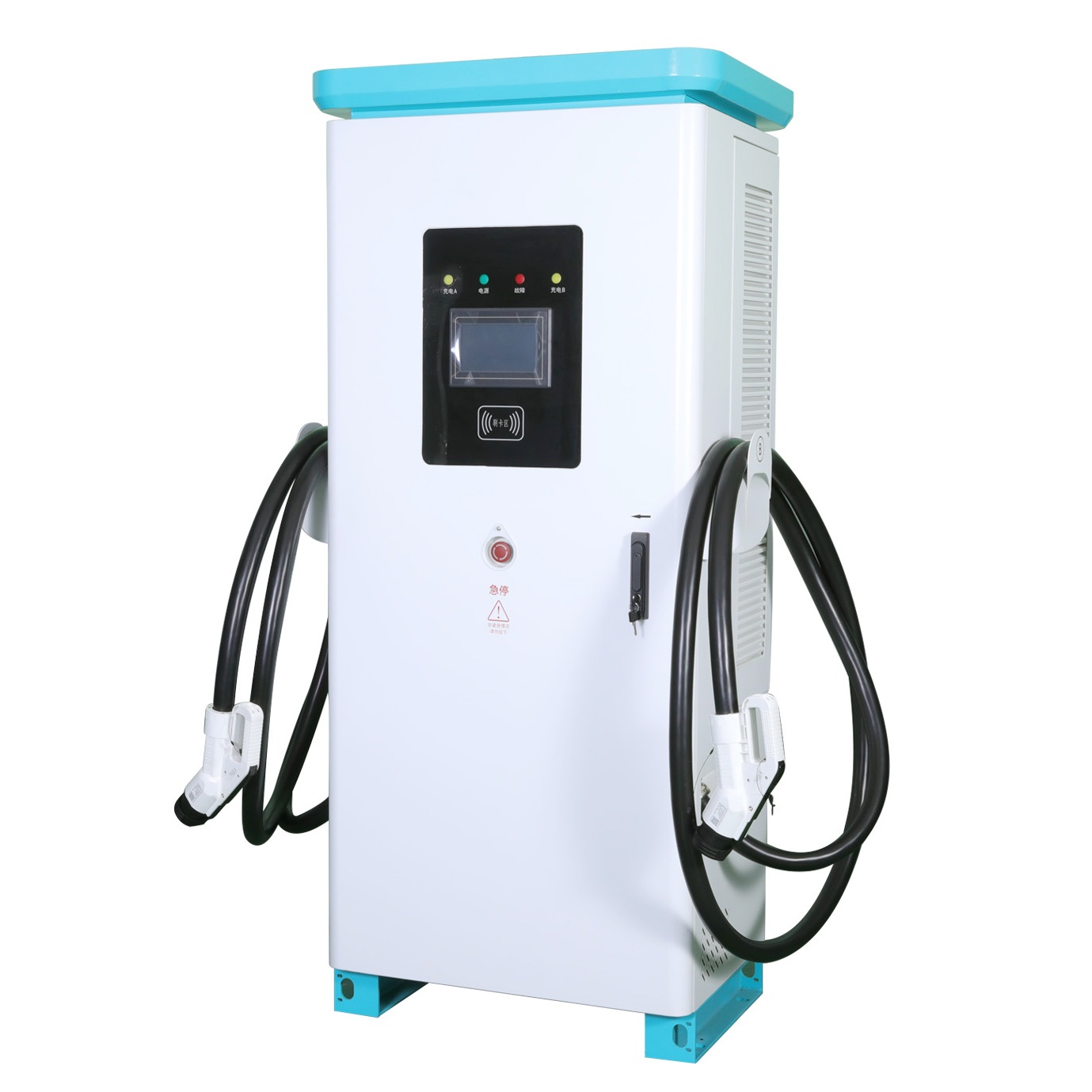

EV DC charger 1


Rated Output Power 180KW
Dimension (H*W*D)(mm) 810*511*1685 mm
Display Mode 7" Color Touch Screen
AC Input Voltage Range (V) 380±15%, 3 phases +N+PE
AC Input Frequency (Hz) 45~66Hz
Power Factor ≥0.99
Current Harmonics (THDI) ≤5%
Efficiency ≥97.5% (full load)
DC Output Voltage Range (V) 200-1000Vdc
Output Voltage Range under Constant Power 300-1000Vdc
DC Output Current (A) 0~250A (single gun)
Length of Charging Gun (m) 5
Noise (dB) <=65
Charging Operation Swiping card/scanning code
Running Indication Power supply, charging, fault
Heat Dissipation Control Air Cooling
Power Distribution Equipartition/Intelligent Distribution/Switching
Altitude (m) ≤2000
Working Temperature (ºC) -20~50
Storage Temperature (ºC) -40~70
Average Relative Humidity 5%~95%
Protective Function Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
Communication Interface CAN,Ethernet, RS485, RS232, GPRS
Protection Grade Outdoor IP54
Case Metal case
Operation backgroud OCCP
Charging Gun standard CC2 Type2 European Standard
Charging mode IEC 61851 charging mode 4

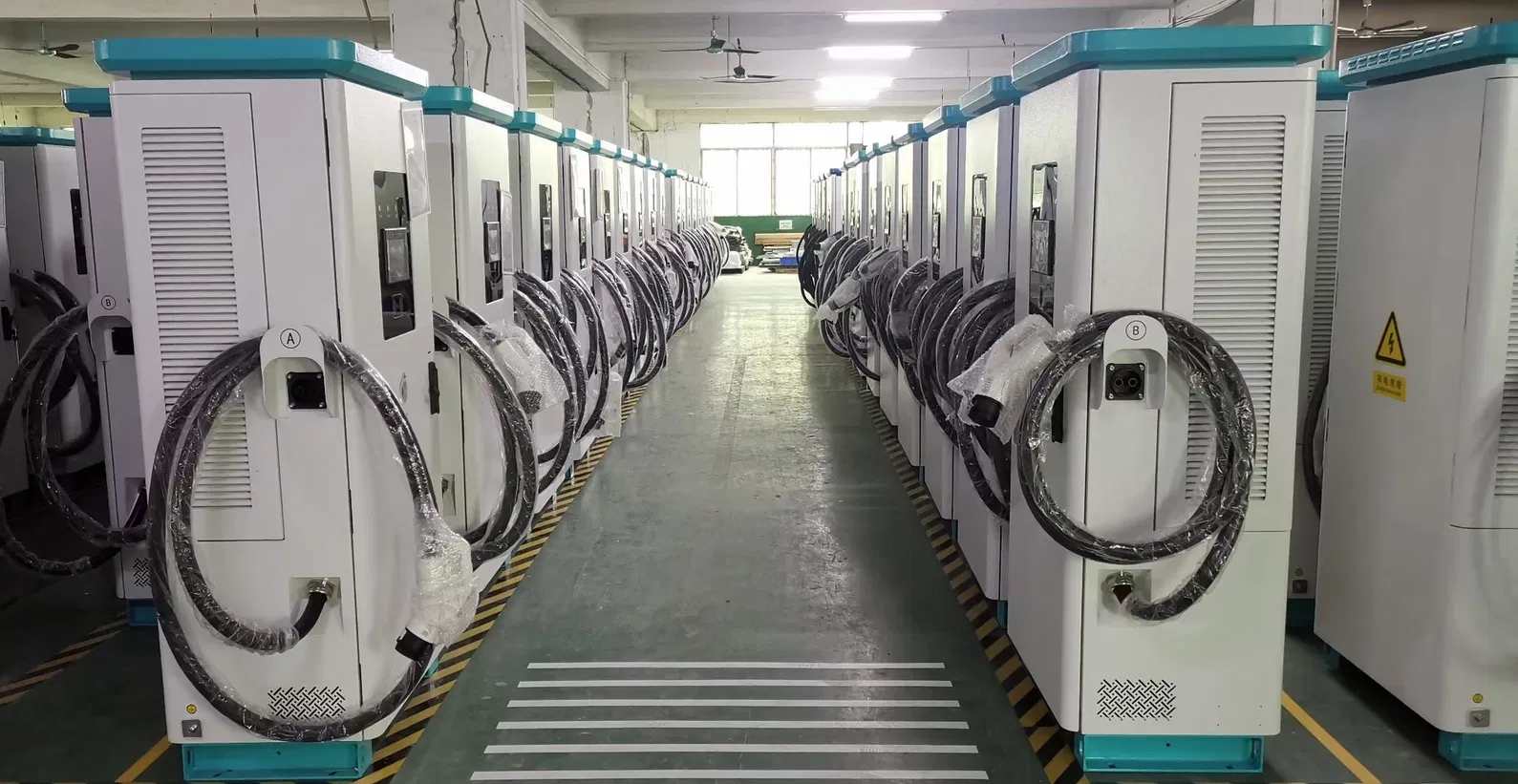

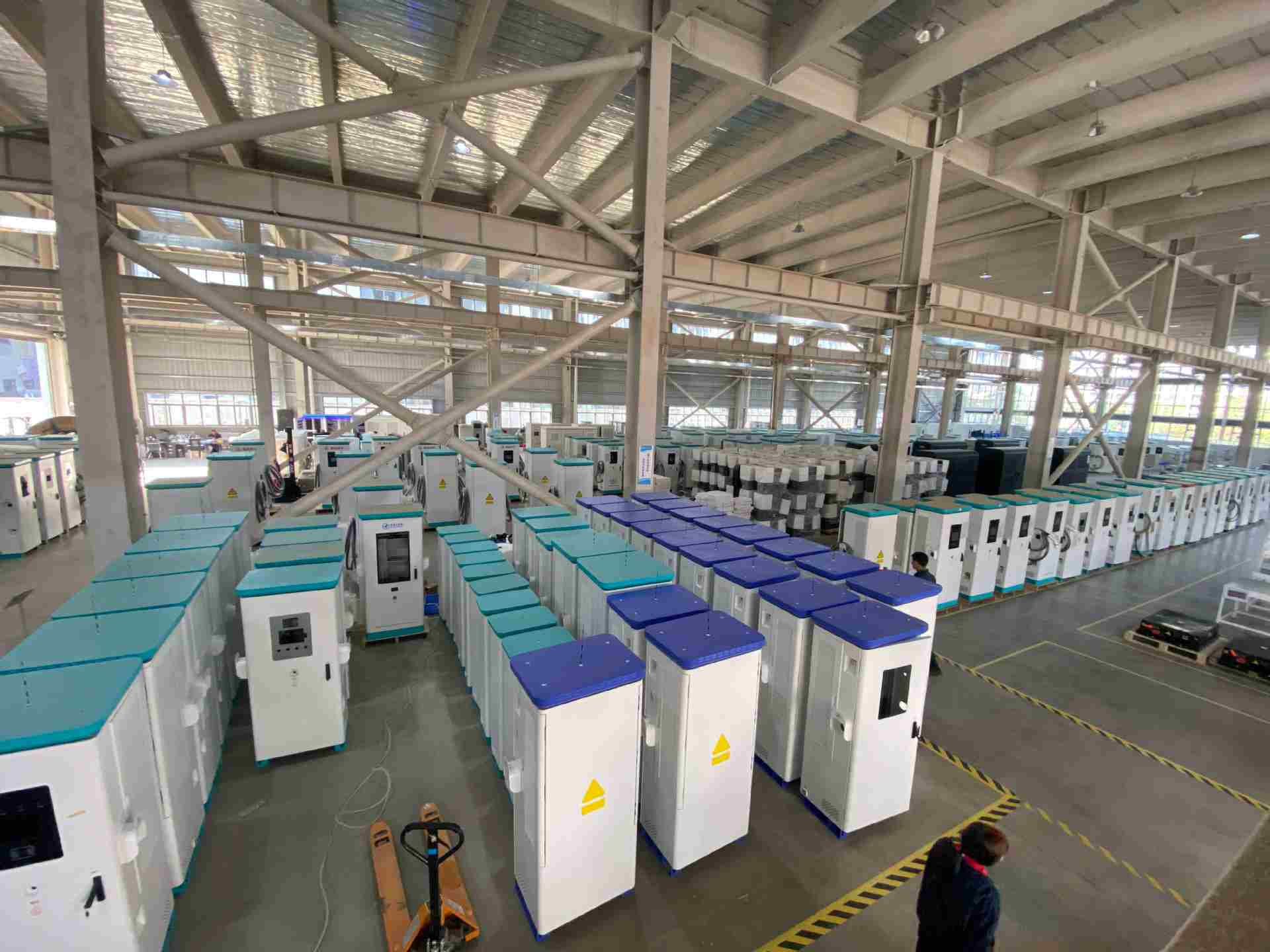

EV DC Charger 3

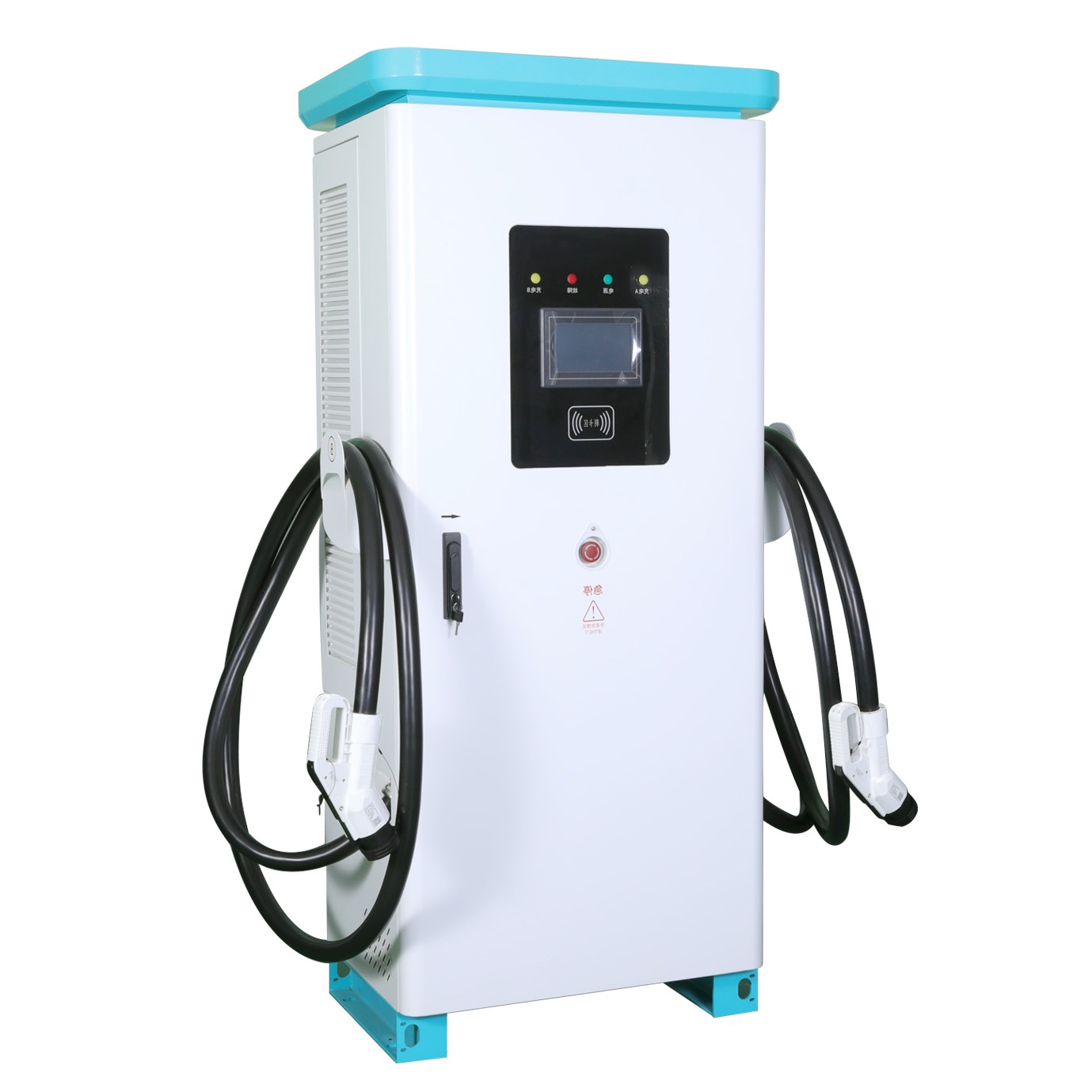

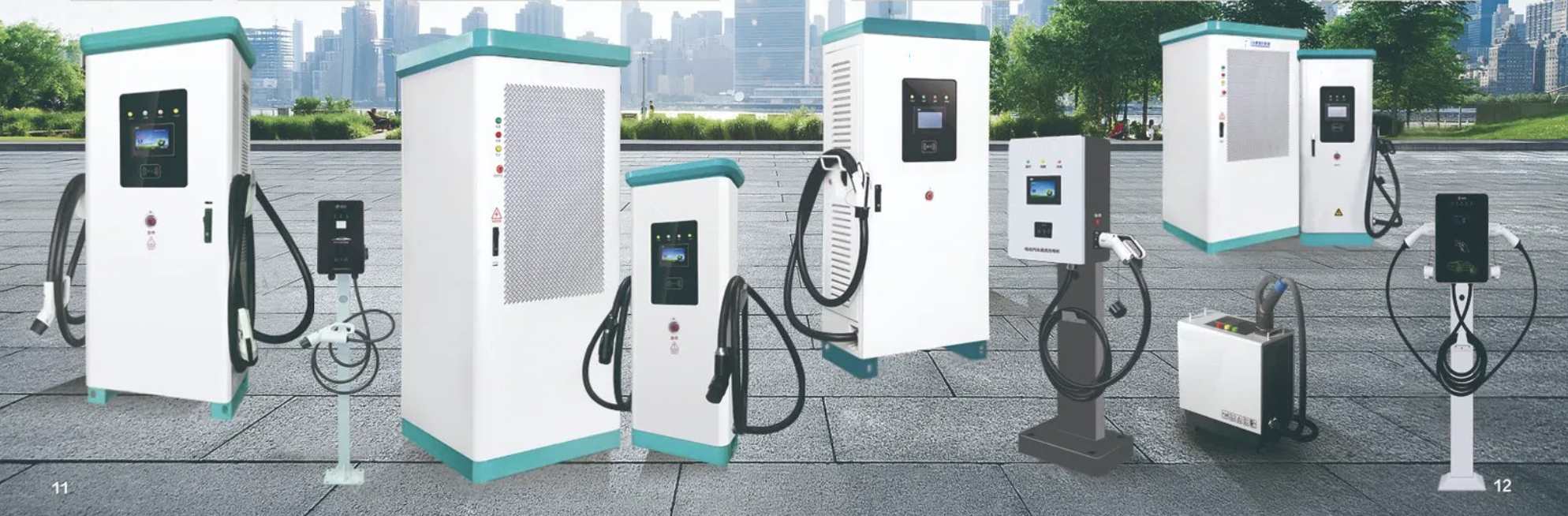

EV DC Charger 11

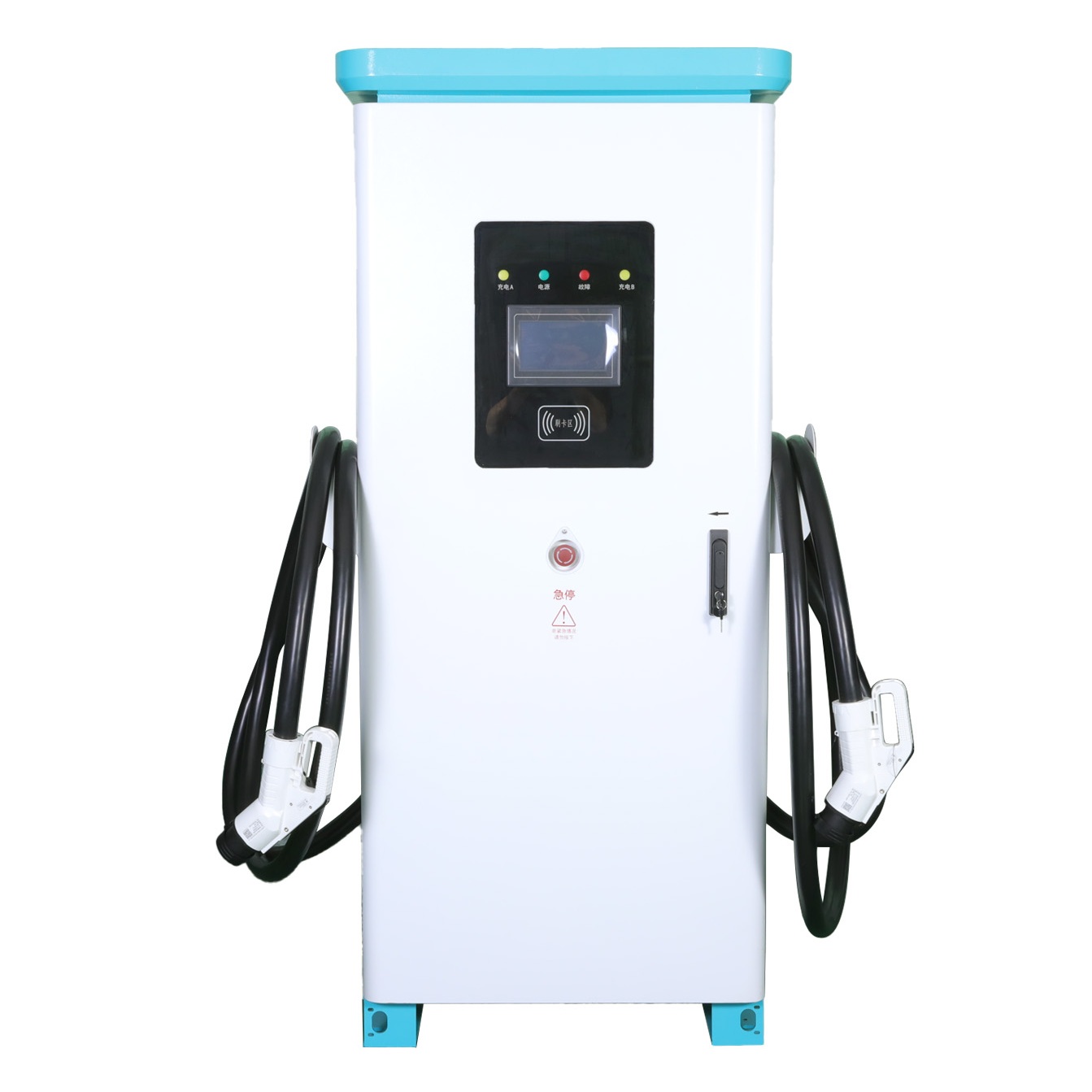

EV DC Charger 6


     OEM Service Available


Design, Shape, Colors, Parametres, LOGO,  all customizable

Perfectly help develop your own brand in the market.

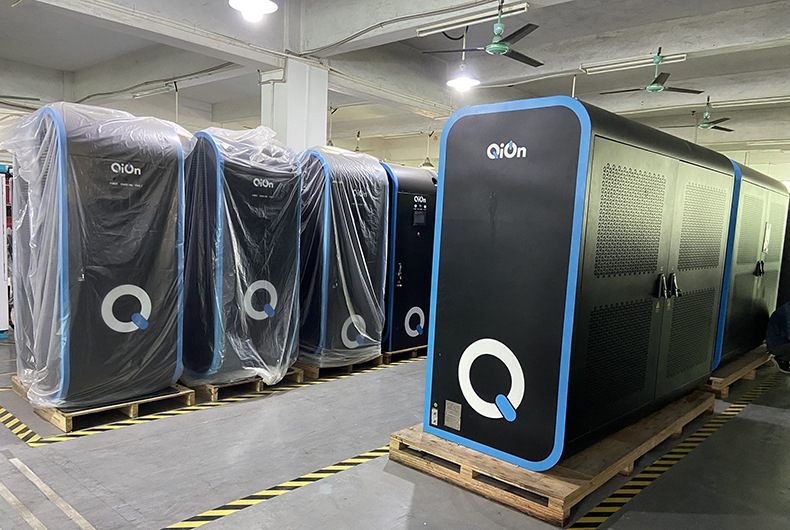

EV DC Charger 15

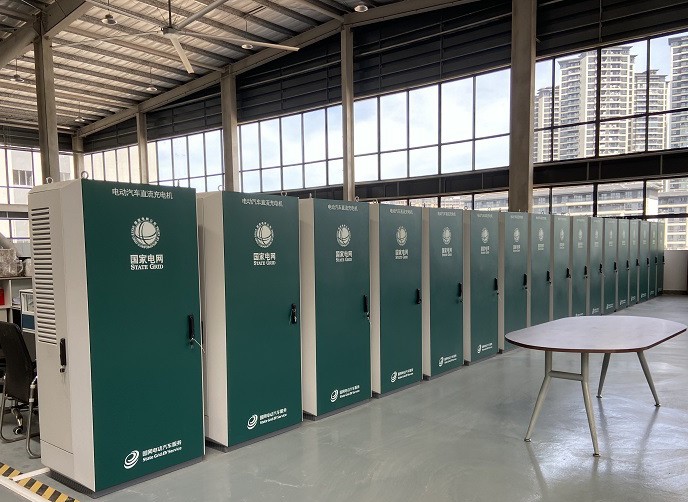

EV DC CHARGER 21
