51.2V 48V 100Ah LiFePO4 Battery For EZ-GO Club Car Golf Cart Trolley

Compared with 4units of 12v Lithium battery connected in series for replacement of  48v AGM/ GEL/ Lead acid, We highly recommend a direct 48v lithium battery pack, which is more powerful and stable in performance.

RJ OEM for many golf cart battey companies around the world, We can customize any dimensions battery to perfectly meet the battery space in many known golf cart, like Club Car Cushman EZGO Yamaha Star Car Polaris.

RJ is a lithium battery Manufacturer for over 16years, recognized by customers from Australia,Europe and North America.We offer Top quality with very good price for lithium Golf Cart Batteries.

If you are a golf cart dealer or fleet manager, to start offering your customers the best-in-class lithium golf cart battery by becoming a RJ dealer. From no maintenance to faster charge times, lithium batteries have many advantages over lead-acid. RJ Lithium batteries feature easier, smarter and safer to ensure your golf carts, and business, are running at maximum performance.

Items	Parameter
Battery Type	LiFePO4
Nominal   Voltage	51.2V
Nominal   Capacity	100Ah
Energy	5120Wh
Internal   Resistance	≤10mΩ
Limited Charge   Voltage	58.4±0.2V
Floating   Charge Voltage	56.4±0.2V
Charge Method	CC/CV
Discharge   Cut-off Voltage	40.0V
Charge Current	150A (Customizable)
Continuous   Discharge Current	150A (Customizable)
Pulse   Discharge Current	300A (Peak)
Depth of   Discharge	100%DOD (adjustable)
Reserve   Minutes @ 30A	300 min
Reserve   Minutes @ 50A	180min
Cycle Life	6000 cycles

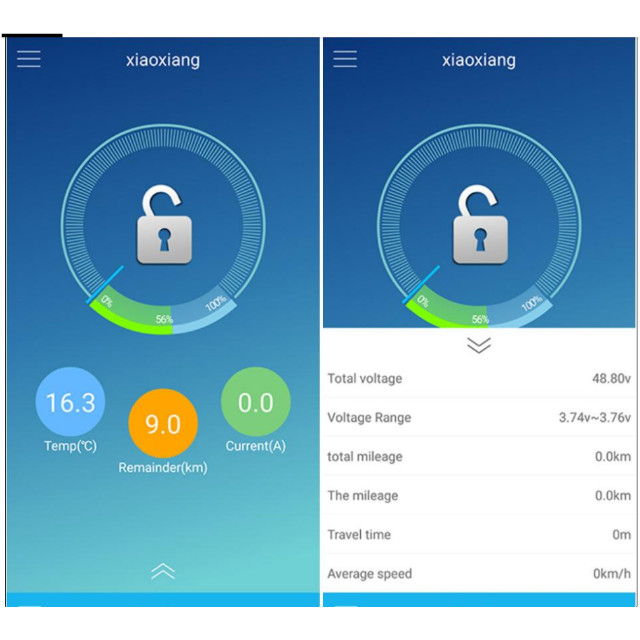

Communication   functions	Bluetooth/RS485   Optional
Temperature   protection	Available
Auto heating   function	Optional
Dimension	Customized For Club Car Cushman EZGO Yamaha Star Car   Polaris etc.
Weight	50Kg
Charge   Temperature Range	0~55℃
Discharge   Temperature Range	-20~65℃
Recommended   Operating Temperature	15~55℃



Features

•          More than 6000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 5years regular warranty and it can be extended up to 10 years.

No.	Item	Test Item	Creterion
1	Voltage	Charging Voltage	DC:58.4V CC/CV
		Balance voltage for single cell	3.50±0.025V
2	Current	Balance voltage for single cell	35±5mA
		Current consumption	≤50μA
		Charging current	150A
		Rated continuous discharging current	150A (Peak 300A)
3	Over charge Protection	Over charge detection voltage for single cell	3.65V±0.025V
		Over charge detection delay time	0.7S—1.3S
		Over charge release voltage for single cell	3.550±0.05V
4	Over discharge Protection	Over discharge detection voltage for single cell	2.50V±0.07V
		Over discharge detection delay time	1.6±0.5S
		Over discharge release voltage for single cell	3.00±0.75V
5	Over current Protection	Over current detection current	400±50A
		Over current detection delay time	1.6±0.5S
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	230uS—500uS
		Release condition	Cut load
7	Resistance	Protection circuitry (MOSFET)	≤60mΩ
8	Temperature	Operating Temperature Range	-40~+85℃
		Storage Temperature Range	-40~+85℃

Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!



LIFEPO4	Dimensions	Weight	with   BMS	Bluetooth/RS485	Life   Cycles	Warranty
48V 40AH	Customized	18kg	Yes	Available	6000times	10Years
48V 50AH	Customized	24kg	Yes	Available	6000times	10Years
48V 60AH	Customized	28kg	Yes	Available	6000times	10Years
48V 75AH	Customized	32kg	Yes	Available	6000times	10Years
48V 80AH	Customized	38kg	Yes	Available	6000times	10Years
48V 100AH	Customized	5kg	Yes	Available	6000times	10Years
48V 120AH	Customized	62kg	Yes	Available	6000times	10Years
48V150AH	Customized	75kg	Yes	Available	6000times	10Years
48V 200AH	Customized	100kg	Yes	Available	6000times	10Years
48V 300AH	Customized	150kg	Yes	Available	6000times	10Years
48V 400AH	Customized	200kg	Yes	Available	6000times	10Years
48v 500AH	Customized	250kg	Yes	Available	6000times	10Years
48V 600AH	Customized	300kg	Yes	Available	6000times	10Years
48V 800AH	Customized	400kg	Yes	Available	6000times	10Years
48V 1000AH	Customized	500kg	Yes	Available	6000times	10Years



1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
