RJ-LFP-48100-A
RJ
RJ-LFP-48100-A
6000CYCLES - 10years Warranty - FACTORY PRICE

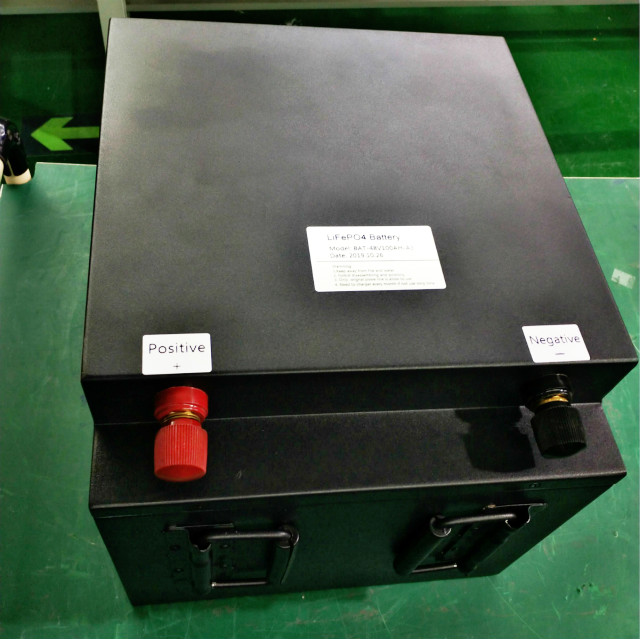

RJ TECH 36v 48v 72v lithium golf cart batteries is designed as a direct drop-in replacement for lead-acid batteries with more than twice the run-time and half the weight, compatible for all high power gears, outstading performance in high demanding conditions.
RJ OEM for many golf cart battey companies around the world, We can customize any dimensions battery to perfectly meet the battery space in many known golf cart.
Perfect for Golf Cart brands:Club Car, EZGO, YAMAHA, LVTONG Star EV · American Custom Golf Carts (ACG) · Polaris GEM · Garia · Tomberlin, etc.
Stronger acceleration up hills with less charging time. More than 6,000 life cycles. Longer lasting and longer range.
Outstanding 10 years warranty brings you a peace of mind.
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 48V |
Nominal Capacity | 100Ah |
Energy | 5120Wh |
Internal Resistance | ≤15mΩ |
Limited Charge Voltage | 58.4V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 40.0V |
Charge Current | 30A (Customizable) |
Continuous Discharge Current | 100A (Customizable) |
Pulse Discharge Current | 200A (Peak) |
Cycle Life | > 6000 cycles |
Dimension (mm) | L380*W315*H280(Customized) |
Weight | 50Kg |
Charge Temperature Range | 0~55℃ |
Discharge Temperature Range | -20~65℃ |
Recommended Operating Temperature | 15~55℃ |
Warranty | 10Years |
Features
• More than 6000 Cycles
• Battery modules available for parallel and series for higher voltage and capacity
• BMS cell balance funciton
• IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
No. | Item | Test Item | Criterion | |
1 | Voltage | Charging Voltage | DC:58.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 30A | |||
Rated continuous discharging current | 100A (Peak 200A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+85℃ |
Bluetooth Function (Optional)
you to read battery status freely anytime via your smart phone.
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 10 years warranty, fully certified. Professional after-sales service, give instruction on how to use the products.
CONTACT US GET A LATEST QUOTE NOW!
