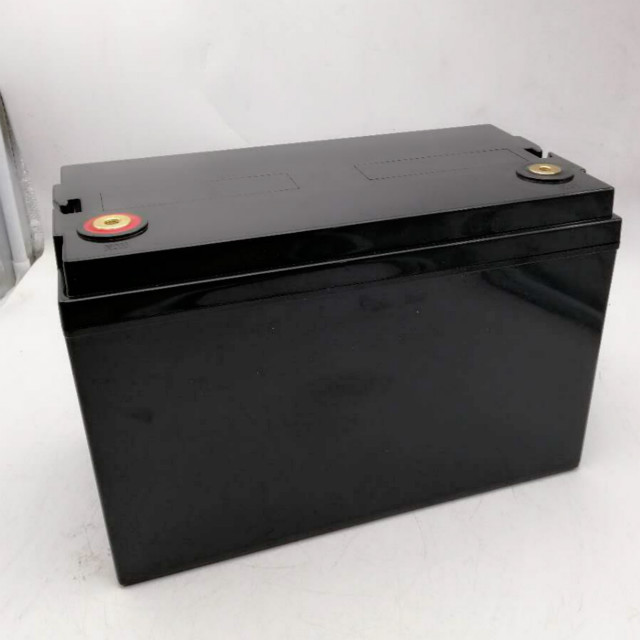

24V 50Ah Lithium Battery Lithium ion Portable Residential Energy System

24volt 50ah LiFePO4 Prismatic Cell Top Quality OEM ODM Telecom Base station UPS ESS
  • RJ-LFP-2450-S

  • RJ

  • RJ-LFP-2450-S


Automated Guided Vehicle System (AGVS) Material handling in manufacturing system is becoming easier as the automated machine technology has improved. One of the material handling methods that has been widely used in most industry now a days is the Automated Guided Vehicle System or better known as the AGVS.

RJ AGV battery usually use 24v 48v battery packs with Bulit-in RS485/CAN BMS, and it enables battery for fast charge, Battery capacity depends on the real needs and size limitation.



Items Parameter
Battery Type LiFePO4
Nominal Voltage 25.6V
Nominal Capacity 50Ah
Energy 1280Wh
Internal Resistance ≤15mΩ
Series & Parallel Application up to 10 parallel connected application
Limited Charge Voltage 29.2V
Floating Charge Voltage 20V
Charge Method CC/CV
Discharge Cut-off Voltage 20V
Charge Current 20A (Customizable)
Continuous Discharge Current 50A (Customizable)
Pulse Discharge Current 100A (Peak)
Cycle Life > 6000 cycles @100%DOD
Dimension (mm) 325mm*171mm*232mm(Customizable)
Weight 13Kg
Charge Temperature Range 0~55℃
Discharge Temperature Range -20~60℃
Recommended Operating Temperature 15~50℃
Storage Temperature & Humidity Range (Less than 1 month) -20~35℃, 45~75%RH
Storage Temperature & Humidity Range (Less than 3 months) -10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range 15~35℃,45~75%RH




•          More than 6000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.

•          We offer 5years regular warranty and it can be extended up to 10 years.


No. Item Test Item Creterion
1 Voltage Charging Voltage DC:29.2V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 20A
Rated continuous discharging current 50A (Peak 100A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 500±50A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃

Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!




LIFEPO4 Dimensions Weight with BMS Bluetooth/RS485 Life Cycles Warranty
24v 10AH 98*165*175mm 2kg Yes Available 6000times 5years
24v 20AH 120*158*190mm 5kg Yes Available 6000times 5years
24v 30AH 165*175*220mm 8kg Yes Available 6000times 5years
24v 40AH 165*175*220mm 10kg Yes Available 6000times 5years
24v 50AH 265*237*215mm 13kg Yes Available 6000times 5years
24v 60AH 265*240*215mm 15kg Yes Available 6000times 5years
24v 75AH 261*270*215mm 18kg Yes Available 6000times 5years
24v 80AH 260*273*225mm 20kg Yes Available 6000times 5years
24v 100AH 175*540*160mm 25kg Yes Available 6000times 5years
24v 120AH 221x450x225mm 30kg Yes Available 6000times 5years
24v150AH 221*450*225mm 38kg Yes Available 6000times 5years
24v 200AH 400*500*160mm 50kg Yes Available 6000times 5years
24v 300AH 400*500*350mm 75kg Yes Available 6000times 5years
24v 400AH 400*500*350mm 100kg Yes Available 6000times 5years
24v 500AH Standard 19in Rack 125kg Yes Available 6000times 5years
24v 600AH Standard 19in Rack 150kg Yes Available 6000times 5years
24v 800AH Standard 19in Rack 200kg Yes Available 6000times 5years
24v 1000AH Standard 19in Rack 250kg Yes Available 6000times 5years




customer reviews





why RJ

1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
