102.4v 200ah High Power Lithium Marine Battery Engine Propeller LiFePO4 Conversion

Powerful discharge Waterproof IP68 Free Maintenance
Material:
Voltage:
Capacity:
Lifespan:
Availability:
Quantity:
  • RJ-LFP-96D200-MB
  • RJ
  • RJ-LFP-96D200-MB



                  8000CYCLES - 10YEARS WARRANTY - FACTORY PRICE


Based on the marine leisure experience, many clubs are committed to creating a marine ecosystem and private customized services that combine yachting, sailing, maritime sightseeing and micro-meal services, providing sorts of solution for friends gatherings, corporate gatherings, family sightseeing, leisure and entertainment, corporate business entertainment, etc.  Safest  battery has greatly support the power supply for the whole process. Within waterproof case,Eco-friendly characteristic, RJ lifepo4 battery  has been listed as the replacement for lead acid/AGM/Gel battery. RJ Lithium battery is very powerful on discharge and fast in charging.


90

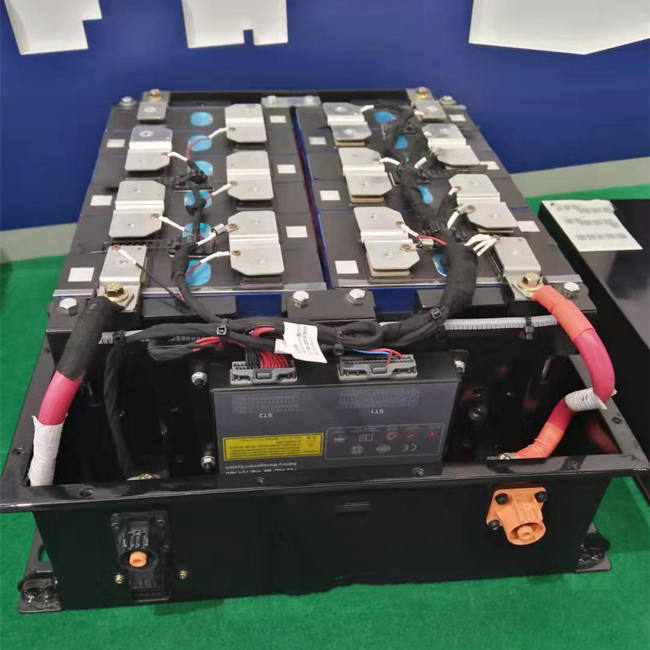

102.4v 200ah Marine Battery -1


Item Specification Note
Nominal Voltage: 102.4V Any voltage can be customized
Nominal Capacity: 200Ah Any capacity can be customized
Discharge Cut-Off: 80V
Charge Cut-Off: 116.8V
Charge Current: 200A Customizable
Cont. Discharge: 200A Customizable
Peak Discharge: 400A Customizable
Impedance: ≤200mΩ
Charge Temperature: 0℃ - 55℃
Discharge Temperature: -20℃ - 65℃
Charge Method: CC/CV
Life Cycle: >8000 times
BMS: With BMS Relay advance solution
Dimension: Flexible Any dimension can be customized
Weight: 180KG Customizable, can add balance block for weight


96v 200ah Marine Battery -2


96v 200ah Marine Battery -3


96v 200ah Marine Battery -4




Features

•          More than 8000 Cycles

•          Battery modules available for parallel and series for higher voltage and capacity

•          BMS Passive cell balance funciton

•          IP66, IP67, water proof, dust proof, Temperature monitoring

•          Customization for Size and Discharge and charge rate

•          Free of Maintenance, contains no poisonous material

•          No leakage, no hazardous chemistry

•          Quick delivery

•          Lighter in weight, smaller in size to save space.

•          Powerfull to increase robust operation for your marine boat or RV

•          Fast charging and high power discharge rate available

•          No need to add water nor worry about maintenance.



BMS

Item



Content Criterion
Over charge
 Protection



Over charge detection voltage 3.6~4.25V
Over charge detection delay time 0.1 S ~ 6S
Over charge release voltage 3.5~4.25V
Over discharge protection

Over discharge detection voltage



2.0~3.3V
Over discharge detection delay time 0.1 S ~ 6S
Over discharge release voltage 2.1~3.4V
Charge
Over current protection
Charge Over current detection current 1~100A
Charge Over current detection delay time 0.02S~ 6S

Discharge

Over current

protection

Discharge Over current detection current 1~600A

Discharge Over current detection delay time



0.02S~ 6S

Short

protection

Short protection detection delay time 100 u S
Detection condition B+ P-0.2 Omh
restore Cut off load
Interior Resistance Main loop electrify resistance 2 OMh(50A)
Currentconsumption Current consume in normal operation 1.5mA Type
Currentconsumption Current consume in sleep operation 2 uA Type


Note BMS is customizable. More advanced functions available, such as bluetooth, RS485, CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!


With powerful capacity of Lithium Battery production, RJ is able to provide 1 to 1 customization service. No matter you only buy 1 pcs battery for your own use, or you are a company looking for bulk order of LiFePO4 Battery Pack, RJ will always meet your full satisfactions!



                                   Contact Us Customize your own battery Now!





RJ-Applications

E-Boat-Marine application



customer reviews

r1

r2

RJ-Warehouse-2

RJ-Warehouse-battery

why RJ

1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 10 years warranty. Professional after-sales service, give instruction on how to use the products.
